Power MOSFETs are widely used in electric vehicles, renewable energy systems, industrial automation, and AI power supplies due to their high switching efficiency and low conduction losses. However, under high voltage, high current, and high switching stress conditions, MOSFET devices may experience degradation or catastrophic failure.
Understanding the failure mechanisms of MOSFETs is essential for improving system reliability and selecting the right semiconductor components.
KOT ELECTRONIC supports engineers with high-quality MOSFET supply, technical insight, and failure analysis expertise for demanding power electronics applications.

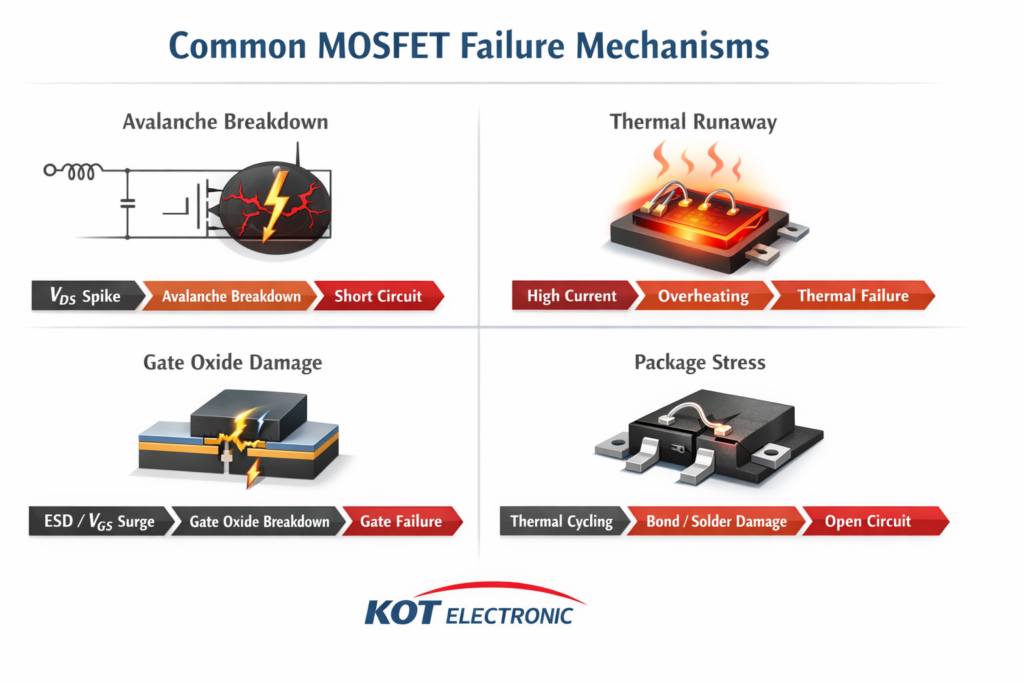

Typical MOSFET Failure Mechanisms
1. Avalanche Breakdown (Overvoltage Stress)
When the drain-source voltage (VDS) exceeds the rated breakdown voltage of the MOSFET, avalanche current may flow through the device, causing internal silicon damage.
Common Causes
-
Inductive load switching
-
Insufficient snubber circuits
-
High parasitic inductance in PCB layout
Typical Failure Characteristics
-
Drain-source short circuit
-
Localized silicon burn marks
-
Device catastrophic failure
Graphic placeholder
MOSFET Voltage Spike Diagram
(VDS spike → Avalanche breakdown)
2. Overcurrent and Thermal Runaway
Excessive current increases power dissipation inside the MOSFET. When heat cannot be dissipated efficiently, junction temperature rises rapidly, potentially leading to thermal runaway.
Common Causes
-
Output short circuits
-
Poor thermal design
-
Insufficient current margin
Failure Characteristics
-
Melted bonding wires
-
Silicon die overheating
-
Package discoloration
Graphic placeholder
Power Dissipation Diagram
(Current → Heat → Junction temperature increase)
3. Gate Oxide Breakdown
The gate oxide layer inside a MOSFET is extremely thin and sensitive to voltage spikes and electrostatic discharge.
If the gate-source voltage (VGS) exceeds its maximum rating, the oxide layer can rupture, permanently damaging the device.
Common Causes
-
Improper gate driver design
-
Electrostatic discharge during handling
-
Switching transients
Failure Characteristics
-
Increased gate leakage current
-
Threshold voltage shift
-
Gate-source short circuit
Graphic placeholder
Gate Oxide Damage Diagram
(ESD / VGS spike → Gate oxide breakdown)
4. Packaging and Mechanical Failure
MOSFET reliability can also be affected by thermal cycling and mechanical stress, especially in high-power applications.
Repeated heating and cooling cycles may lead to:
-
Bond wire fatigue
-
Solder joint cracking
-
Increased on-resistance
Typical Symptoms
-
Intermittent operation
-
Higher conduction losses
-
Device open circuit
MOSFET Failure Analysis Process
A structured failure analysis process helps engineers identify the root cause and improve system reliability.
Step 1 – Electrical Testing
Initial electrical tests determine the failure mode of the device.
Typical measurements include:
-
Drain-source breakdown voltage
-
Gate leakage current
-
Threshold voltage
Step 2 – Non-Destructive Inspection
Advanced inspection methods help identify internal structural defects without damaging the device.
Common techniques include:
-
X-ray imaging
-
Scanning Acoustic Microscopy (SAM)
Step 3 – Physical Analysis
After inspection, the device may be opened for deeper investigation.
Typical techniques include:
-
Decapsulation
-
Optical microscopy
-
Scanning Electron Microscopy (SEM)
Step 4 – Root Cause Identification
The final step correlates device damage with circuit conditions, helping engineers determine whether the failure was caused by:
-
Electrical overstress
-
Thermal overstress
-
Design or layout issues
-
Environmental factors
