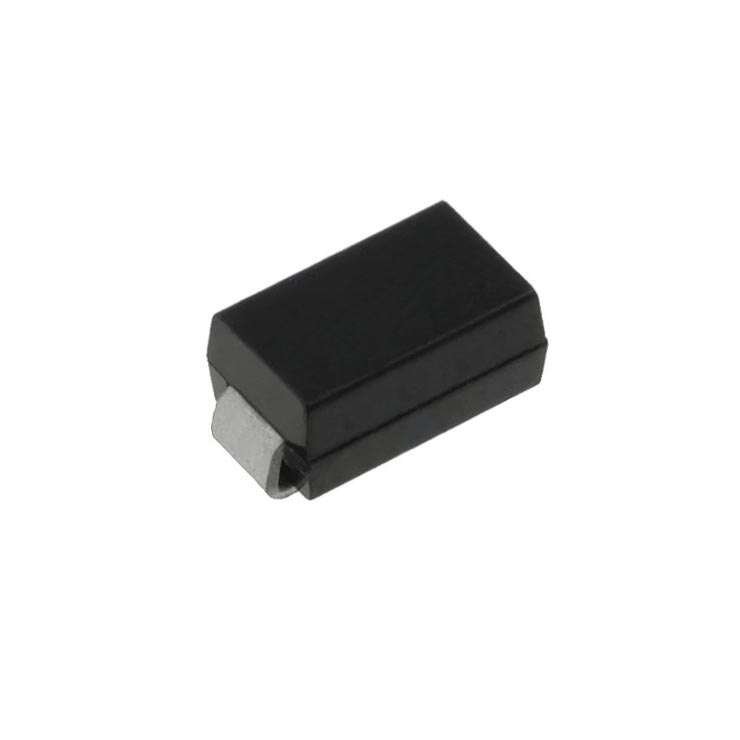

SMD Diode

SMD Diode

Description

  • Mfr Part: MURS1XXX S1X EM520/A S2XA S3XA RS1X RS2XA US1X US2XA US1X US2XA US3XA ES1X ES2XA ES3XA SS1XX TSS1XL SS2XA SS2XLA SS3XA SS3XXA SS3XXLA TSS3XXLA SS5XXA MX MXF S2XF RS1XF RS2XF US1XF US2XF ES1XF ES2XF SSXXXF TSS3XXLF SS2XL TSS2XL SS2XX SS3XXB SS3XXLB SBR3XLB TSS3XLB SS5XXB SS5XXLB SBR5XXLB TSS5XXLB SS3XXBF SS5XXBF MURSXXXX S3X S5X S6X S10X RS3X RS5X RS6X DS2X DRS2X DS1X DRS1X DUS1X DES1X DSSXXX DTSSXXL DSS2XX DSS3XX
  • Package: SMA SMA-W SMAF SMB SMB-W SMBF SMC SOD-123FL
  • Feature: Produced by Changzhou factory under our own brand, all components meet international standards, offering reliable performance and competitive pricing.
  • Note: The other package or parameter can be made according to customer’s requirement, please send the data sheet or parameter to sales@kotelectronic.com
Category: Tag: Brand:
Spread the love
Spread the love

SMD diodes feature compact design, high reliability, and excellent thermal performance, making them ideal for space-constrained and automated assembly applications across consumer, industrial, and automotive electronics.

Main Applications

SMD Diodes are widely used in signal switching, rectification, voltage regulation, and circuit protection, offering compact size and high reliability for modern electronic designs. With advantages such as fast switching speed, low leakage current, and excellent thermal performance, they are ideal for applications in smartphones, computers, consumer electronics, automotive systems, industrial equipment, and communication devices where space-saving and high-efficiency components are required.

Typical Models

Part Number IF_Max VRM_Max IF VF_Max IR_Max TRR_Max Package
(A) (V) (A) (V) (uA) (ns)
DS2A 1.5 50 2 1.1 5   SOD123FL
DS2B 1.5 100 2 1.1 5   SOD123FL
DS2D 1.5 200 2 1.1 5   SOD123FL
DS2G 1.5 400 2 1.1 5   SOD123FL
DS2J 1.5 600 2 1.1 5   SOD123FL
DS2K 1.5 800 2 1.1 5   SOD123FL
DS2M 1.5 1000 2 1.1 5   SOD123FL
DRS2A 1.5 50 1.5 1.3 5.0 150 SOD123FL
DRS2B 1.5 100 1.5 1.3 5.0 150 SOD123FL
DRS2D 1.5 200 1.5 1.3 5.0 150 SOD123FL
DRS2G 1.5 400 1.5 1.3 5.0 150 SOD123FL
DRS2J 1.5 600 1.5 1.3 5.0 250 SOD123FL
DRS2K 1.5 800 1.5 1.3 5.0 500 SOD123FL
DRS2M 1.5 1000 1.5 1.3 5.0 500 SOD123FL
MURS120 1.0 200 1.0 0.875 10.0 25 SMA
MURS140 1.0 400 1.0 1.250 10.0 50 SMA
MURS160 1.0 600 1.0 1.250 10.0 50 SMA
MURS180 1.0 800 1.0 1.700 10.0 75 SMA
MURS1100 1.0 1000 1.0 1.700 10.0 75 SMA
MURS120B 1.0 200 1.0 0.875 10.0 25 SMB
MURS140B 1.0 400 1.0 1.250 10.0 50 SMB
MURS160B 1.0 600 1.0 1.250 10.0 50 SMB
MURS180B 1.0 800 1.0 1.700 10.0 75 SMB
MURS1100B 1.0 1000 1.0 1.700 10.0 75 SMB
MURS220 2.0 200 2.0 0.875 10.0 25 SMB
MURS240 2.0 400 2.0 1.250 10.0 50 SMB
MURS260 2.0 600 2.0 1.250 10.0 50 SMB
MURS280 2.0 800 2.0 1.700 10.0 75 SMB
MURS2100 2.0 1000 2.0 1.700 10.0 75 SMB
MURS320B 3.0 200 3.0 0.875 10.0 25 SMB
MURS340B 3.0 400 3.0 1.250 10.0 50 SMB
MURS360B 3.0 600 3.0 1.250 10.0 50 SMB
MURS380B 3.0 800 3.0 1.700 10.0 75 SMB
MURS3100B 3.0 1000 3.0 1.700 10.0 75 SMB
MURS320 3.0 200 3.0 0.875 10.0 25 SMC
MURS340 3.0 400 3.0 1.250 10.0 50 SMC
MURS360 3.0 600 3.0 1.250 10.0 50 SMC
MURS380 3.0 800 3.0 1.700 10.0 75 SMC
MURS3100 3.0 1000 3.0 1.700 10.0 75 SMC
MURS420B 4.0 200 4.0 0.890 10.0 25 SMB
MURS440B 4.0 400 4.0 1.280 10.0 50 SMB
MURS460B 4.0 600 4.0 1.280 10.0 50 SMB
MURS480B 4.0 800 4.0 1.700 10.0 75 SMB
MURS4100B 4.0 1000 4.0 1.700 10.0 75 SMB
MURS420 4.0 200 4.0 0.890 10.0 25 SMC
MURS440 4.0 400 4.0 1.280 10.0 50 SMC
MURS460 4.0 600 4.0 1.280 10.0 50 SMC
MURS480 4.0 800 4.0 1.700 10.0 75 SMC
MURS4100 4.0 1000 4.0 1.700 10.0 75 SMC
MURS520B 5.0 200 4.0 0.930 10.0 25 SMB
MURS540B 5.0 400 4.0 0.930 10.0 50 SMB
MURS560B 5.0 600 4.0 1.300 10.0 50 SMB
MURS580B 5.0 800 4.0 1.700 10.0 75 SMB
MURS5100B 5.0 1000 4.0 1.700 10.0 75 SMB
MURS520 5.0 200 4.0 0.930 10.0 25 SMC
MURS540 5.0 400 4.0 0.930 10.0 50 SMC
MURS560 5.0 600 4.0 1.300 10.0 50 SMC
MURS580 5.0 800 4.0 1.700 10.0 75 SMC
MURS5100 5.0 1000 4.0 1.700 10.0 75 SMC
DS1A 1.0 50 1 1.1 5   SOD123FL
DS1B 1.0 100 1 1.1 5   SOD123FL
DS1D 1.0 200 1 1.1 5   SOD123FL
DS1G 1.0 400 1 1.1 5   SOD123FL
DS1J 1.0 600 1 1.1 5   SOD123FL
DS1K 1.0 800 1 1.1 5   SOD123FL
DS1M 1.0 1000 1 1.1 5   SOD123FL
DS1Z 1.0 2000 1 1.3 5   SOD123FL
M1 1.0 50 1 1.1 5   SMA-W
M2 1.0 100 1 1.1 5   SMA-W
M3 1.0 200 1 1.1 5   SMA-W
M4 1.0 400 1 1.1 5   SMA-W
M5 1.0 600 1 1.1 5   SMA-W
M6 1.0 800 1 1.1 5   SMA-W
M7 1.0 1000 1 1.1 5   SMA-W
M1F 1.0 50 1 1.1 5   SMAF
M2F 1.0 100 1 1.1 5   SMAF
M3F 1.0 200 1 1.1 5   SMAF
M4F 1.0 400 1 1.1 5   SMAF
M5F 1.0 600 1 1.1 5   SMAF
M6F 1.0 800 1 1.1 5   SMAF
M7F 1.0 1000 1 1.1 5   SMAF
S1A 1.0 50 1 1.1 5   SMA
S1B 1.0 100 1 1.1 5   SMA
S1D 1.0 200 1 1.1 5   SMA
S1G 1.0 400 1 1.1 5   SMA
S1J 1.0 600 1 1.1 5   SMA
S1K 1.0 800 1 1.1 5   SMA
S1M 1.0 1000 1 1.1 5   SMA
S1P 1.0 1300 1 1.1 5   SMA
S1T 1.0 1600 1 1.1 5   SMA
EM520 1.0 2000 1.0 1.1 5   SMA
EM520S 0.5 2000 0.5 2 5   SMA-W
EM520A 0.5 2000 0.5 2 5   SMA
S2AA 2.0 50 2 1.1 5   SMA
S2BA 2.0 100 2 1.1 5   SMA
S2DA 2.0 200 2 1.1 5   SMA
S2GA 2.0 400 2 1.1 5   SMA
S2JA 2.0 600 2 1.1 5   SMA
S2KA 2.0 800 2 1.1 5   SMA
S2MA 2.0 1000 2 1.1 5   SMA
S2PA 2.0 1300 2 1.1 5   SMA
S2TA 2.0 1600 2 1.1 5   SMA
S2AF 2.0 50 2 1.1 5   SMAF
S2BF 2.0 100 2 1.1 5   SMAF
S2DF 2.0 200 2 1.1 5   SMAF
S2GF 2.0 400 2 1.1 5   SMAF
S2JF 2.0 600 2 1.1 5   SMAF
S2KF 2.0 800 2 1.1 5   SMAF
S2MF 2.0 1000 2 1.1 5   SMAF
S2A 2.0 50 2 1.1 5   SMB
S2B 2.0 100 2 1.1 5   SMB
S2D 2.0 200 2 1.1 5   SMB
S2G 2.0 400 2 1.1 5   SMB
S2J 2.0 600 2 1.1 5   SMB
S2K 2.0 800 2 1.1 5   SMB
S2M 2.0 1000 2 1.1 5   SMB
S2ABF 2.0 50 2 1.1 5   SMBF
S2BBF 2.0 100 2 1.1 5   SMBF
S2DBF 2.0 200 2 1.1 5   SMBF
S2GBF 2.0 400 2 1.1 5   SMBF
S2JBF 2.0 600 2 1.1 5   SMBF
S2KBF 2.0 800 2 1.1 5   SMBF
S2MBF 2.0 1000 2 1.1 5   SMBF
S3AA 3.0 50 3 1.1 10   SMA
S3BA 3.0 100 3 1.1 10   SMA
S3DA 3.0 200 3 1.1 10   SMA
S3GA 3.0 400 3 1.1 10   SMA
S3JA 3.0 600 3 1.1 10   SMA
S3KA 3.0 800 3 1.1 10   SMA
S3MA 3.0 1000 3 1.1 10   SMA
S3AB 3.0 50 3 1.1 10   SMB
S3BB 3.0 100 3 1.1 10   SMB
S3DB 3.0 200 3 1.1 10   SMB
S3GB 3.0 400 3 1.1 10   SMB
S3JB 3.0 600 3 1.1 10   SMB
S3KB 3.0 800 3 1.1 10   SMB
S3MB 3.0 1000 3 1.1 10   SMB
S3ABF 3.0 50 3 1.1 10   SMBF
S3BBF 3.0 100 3 1.1 10   SMBF
S3DBF 3.0 200 3 1.1 10   SMBF
S3GBF 3.0 400 3 1.1 10   SMBF
S3JBF 3.0 600 3 1.1 10   SMBF
S3KBF 3.0 800 3 1.1 10   SMBF
S3MBF 3.0 1000 3 1.1 10   SMBF
S3A 3.0 50 3 1.1 10   SMC
S3B 3.0 100 3 1.1 10   SMC
S3D 3.0 200 3 1.1 10   SMC
S3G 3.0 400 3 1.1 10   SMC
S3J 3.0 600 3 1.1 10   SMC
S3K 3.0 800 3 1.1 10   SMC
S3M 3.0 1000 3 1.1 10   SMC
S5AB 5.0 50 5.0 1.1 10   SMB
S5BB 5.0 100 5.0 1.1 10   SMB
S5DB 5.0 200 5.0 1.1 10   SMB
S5GB 5.0 400 5.0 1.1 10   SMB
S5JB 5.0 600 5.0 1.1 10   SMB
S5KB 5.0 800 5.0 1.1 10   SMB
S5MB 5.0 1000 5.0 1.1 10   SMB
S5A 5.0 50 5.0 1.1 10   SMC
S5B 5.0 100 5.0 1.1 10   SMC
S5D 5.0 200 5.0 1.1 10   SMC
S5G 5.0 400 5.0 1.1 10   SMC
S5J 5.0 600 5.0 1.1 10   SMC
S5K 5.0 800 5.0 1.1 10   SMC
S5M 5.0 1000 5.0 1.1 10   SMC
S6A 6.0 50 6.0 1.1 10   SMC
S6B 6.0 100 6.0 1.1 10   SMC
S6D 6.0 200 6.0 1.1 10   SMC
S6G 6.0 400 6.0 1.1 10   SMC
S6J 6.0 600 6.0 1.1 10   SMC
S6K 6.0 800 6.0 1.1 10   SMC
S6M 6.0 1000 6.0 1.1 10   SMC
S10A 10.0 50 10 1.1 10   SMC
S10B 10.0 100 10 1.1 10   SMC
S10D 10.0 200 10 1.1 10   SMC
S10G 10.0 400 10 1.1 10   SMC
S10J 10.0 600 10 1.1 10   SMC
S10K 10.0 800 10 1.1 10   SMC
S10M 10.0 1000 10 1.1 10   SMC
DRS1A 1.0 50 1 1.3 5 150 SOD123FL
DRS1B 1.0 100 1 1.3 5 150 SOD123FL
DRS1D 1.0 200 1 1.3 5 150 SOD123FL
DRS1G 1.0 400 1 1.3 5 150 SOD123FL
DRS1J 1.0 600 1 1.3 5 250 SOD123FL
DRS1K 1.0 800 1 1.3 5 500 SOD123FL
DRS1M 1.0 1000 1 1.3 5 500 SOD123FL
RS1A-W 1.0 50 1 1.3 5 150 SMA-W
RS1B-W 1.0 100 1 1.3 5 150 SMA-W
RS1D-W 1.0 200 1 1.3 5 150 SMA-W
RS1G-W 1.0 400 1 1.3 5 150 SMA-W
RS1J-W 1.0 600 1 1.3 5 250 SMA-W
RS1K-W 1.0 800 1 1.3 5 500 SMA-W
RS1M-W 1.0 1000 1 1.3 5 500 SMA-W
RS1A 1.0 50 1 1.3 5 150 SMA
RS1B 1.0 100 1 1.3 5 150 SMA
RS1D 1.0 200 1 1.3 5 150 SMA
RS1G 1.0 400 1 1.3 5 150 SMA
RS1J 1.0 600 1 1.3 5 250 SMA
RS1K 1.0 800 1 1.3 5 500 SMA
RS1M 1.0 1000 1 1.3 5 500 SMA
RS1AF 1.0 50 1 1.3 5 150 SMAF
RS1BF 1.0 100 1 1.3 5 150 SMAF
RS1DF 1.0 200 1 1.3 5 150 SMAF
RS1GF 1.0 400 1 1.3 5 150 SMAF
RS1JF 1.0 600 1 1.3 5 250 SMAF
RS1KF 1.0 800 1 1.3 5 500 SMAF
RS1MF 1.0 1000 1 1.3 5 500 SMAF
RS2AA 2.0 50 2 1.3 5 150 SMA
RS2BA 2.0 100 2 1.3 5 150 SMA
RS2DA 2.0 200 2 1.3 5 150 SMA
RS2GA 2.0 400 2 1.3 5 150 SMA
RS2JA 2.0 600 2 1.3 5 250 SMA
RS2KA 2.0 800 2 1.3 5 500 SMA
RS2MA 2.0 1000 2 1.3 5 500 SMA
RS2AF 2.0 50 2 1.3 5 150 SMAF
RS2BF 2.0 100 2 1.3 5 150 SMAF
RS2DF 2.0 200 2 1.3 5 150 SMAF
RS2GF 2.0 400 2 1.3 5 150 SMAF
RS2JF 2.0 600 2 1.3 5 250 SMAF
RS2KF 2.0 800 2 1.3 5 500 SMAF
RS2MF 2.0 1000 2 1.3 5 500 SMAF
RS2A 2.0 50 2 1.3 5 150 SMB
RS2B 2.0 100 2 1.3 5 150 SMB
RS2D 2.0 200 2 1.3 5 150 SMB
RS2G 2.0 400 2 1.3 5 150 SMB
RS2J 2.0 600 2 1.3 5 250 SMB
RS2K 2.0 800 2 1.3 5 500 SMB
RS2M 2.0 1000 2 1.3 5 500 SMB
RS2ABF 2.0 50 2 1.3 5 150 SMBF
RS2BBF 2.0 100 2 1.3 5 150 SMBF
RS2DBF 2.0 200 2 1.3 5 150 SMBF
RS2GBF 2.0 400 2 1.3 5 150 SMBF
RS2JBF 2.0 600 2 1.3 5 250 SMBF
RS2KBF 2.0 800 2 1.3 5 500 SMBF
RS2MBF 2.0 1000 2 1.3 5 500 SMBF
RS3AB 3.0 50 3 1.3 10 150 SMB
RS3BB 3.0 100 3 1.3 10 150 SMB
RS3DB 3.0 200 3 1.3 10 150 SMB
RS3GB 3.0 400 3 1.3 10 150 SMB
RS3JB 3.0 600 3 1.3 10 250 SMB
RS3KB 3.0 800 3 1.3 10 500 SMB
RS3MB 3.0 1000 3 1.3 10 500 SMB
RS3A 3.0 50 3 1.3 10 150 SMC
RS3B 3.0 100 3 1.3 10 150 SMC
RS3D 3.0 200 3 1.3 10 150 SMC
RS3G 3.0 400 3 1.3 10 150 SMC
RS3J 3.0 600 3 1.3 10 250 SMC
RS3K 3.0 800 3 1.3 10 500 SMC
RS3M 3.0 1000 3 1.3 10 500 SMC
RS5AB 5.0 50 5.0 1.3 10 150 SMB
RS5BB 5.0 100 5.0 1.3 10 150 SMB
RS5DB 5.0 200 5.0 1.3 10 150 SMB
RS5GB 5.0 400 5.0 1.3 10 150 SMB
RS5JB 5.0 600 5.0 1.3 10 250 SMB
RS5KB 5.0 800 5.0 1.3 10 500 SMB
RS5MB 5.0 1000 5.0 1.3 10 500 SMB
RS5A 5.0 50 5.0 1.3 10 150 SMC
RS5B 5.0 100 5.0 1.3 10 150 SMC
RS5D 5.0 200 5.0 1.3 10 150 SMC
RS5G 5.0 400 5.0 1.3 10 150 SMC
RS5J 5.0 600 5.0 1.3 10 250 SMC
RS5K 5.0 800 5.0 1.3 10 500 SMC
RS5M 5.0 1000 5.0 1.3 10 500 SMC
RS6A 6.0 50 6.0 1.3 10 150 SMC
RS6B 6.0 100 6.0 1.3 10 150 SMC
RS6D 6.0 200 6.0 1.3 10 150 SMC
RS6G 6.0 400 6.0 1.3 10 150 SMC
RS6J 6.0 600 6.0 1.3 10 250 SMC
RS6K 6.0 800 6.0 1.3 10 500 SMC
RS6M 6.0 1000 6.0 1.3 10 500 SMC
DUS1A 1.0 50 1 1 5 50 SOD123FL
DUS1B 1.0 100 1 1 5 50 SOD123FL
DUS1D 1.0 200 1 1 5 50 SOD123FL
DUS1G 1.0 400 1 1.3 5 50 SOD123FL
DUS1J 1.0 600 1 1.7 5 75 SOD123FL
DUS1K 1.0 800 1 1.7 5 75 SOD123FL
DUS1M 1.0 1000 1 1.7 5 75 SOD123FL
US1A 1.0 50 1 1 5 50 SMA
US1B 1.0 100 1 1 5 50 SMA
US1D 1.0 200 1 1 5 50 SMA
US1G 1.0 400 1 1.3 5 50 SMA
US1J 1.0 600 1 1.7 5 75 SMA
US1K 1.0 800 1 1.7 5 75 SMA
US1M 1.0 1000 1 1.7 5 75 SMA
US1AF 1.0 50 1 1 5 50 SMAF
US1BF 1.0 100 1 1 5 50 SMAF
US1DF 1.0 200 1 1 5 50 SMAF
US1GF 1.0 400 1 1.3 5 50 SMAF
US1JF 1.0 600 1 1.7 5 75 SMAF
US1KF 1.0 800 1 1.7 5 75 SMAF
US1MF 1.0 1000 1 1.7 5 75 SMAF
US1A-W 1.0 50 1 1 5 50 SMA-W
US1B-W 1.0 100 1 1 5 50 SMA-W
US1D-W 1.0 200 1 1 5 50 SMA-W
US1G-W 1.0 400 1 1.3 5 50 SMA-W
US1J-W 1.0 600 1 1.7 5 75 SMA-W
US1K-W 1.0 800 1 1.7 5 75 SMA-W
US1M-W 1.0 1000 1 1.7 5 75 SMA-W
US2AA 2.0 50 2 1 5 50 SMA
US2BA 2.0 100 2 1 5 50 SMA
US2DA 2.0 200 2 1 5 50 SMA
US2GA 2.0 400 2 1.3 5 50 SMA
US2JA 2.0 600 2 1.7 5 75 SMA
US2KA 2.0 800 2 1.7 5 75 SMA
US2MA 2.0 1000 2 1.7 5 75 SMA
US2AF 2.0 50 2 1 5 50 SMAF
US2BF 2.0 100 2 1 5 50 SMAF
US2DF 2.0 200 2 1 5 50 SMAF
US2GF 2.0 400 2 1.3 5 50 SMAF
US2JA 2.0 600 2 1.7 5 75 SMAF
US2KF 2.0 800 2 1.7 5 75 SMAF
US2MF 2.0 1000 2 1.7 5 75 SMAF
US2ABF 2.0 50 2 1 5 50 SMBF
US2BBF 2.0 100 2 1 5 50 SMBF
US2DBF 2.0 200 2 1 5 50 SMBF
US2GBF 2.0 400 2 1.3 5 50 SMBF
US2JBF 2.0 600 2 1.7 5 75 SMBF
US2KBF 2.0 800 2 1.7 5 75 SMBF
US2MBF 2.0 1000 2 1.7 5 75 SMBF
US2A 2.0 50 2 1 5 50 SMB
US2B 2.0 100 2 1 5 50 SMB
US2D 2.0 200 2 1 5 50 SMB
US2G 2.0 400 2 1.3 5 50 SMB
US2J 2.0 600 2 1.7 5 75 SMB
US2K 2.0 800 2 1.7 5 75 SMB
US2M 2.0 1000 2 1.7 5 75 SMB
US3AA 3.0 50 3 1 5 50 SMA
US3BA 3.0 100 3 1 5 50 SMA
US3DA 3.0 200 3 1 5 50 SMA
US3GA 3.0 400 3 1.3 5 50 SMA
US3JA 3.0 600 3 1.7 5 75 SMA
US3KA 3.0 800 3 1.7 5 75 SMA
US3MA 3.0 1000 3 1.7 5 75 SMA
US3AB 3.0 50 3 1 5 50 SMB
US3BB 3.0 100 3 1 5 50 SMB
US3DB 3.0 200 3 1 5 50 SMB
US3GB 3.0 400 3 1.3 5 50 SMB
US3JB 3.0 600 3 1.7 5 75 SMB
US3KB 3.0 800 3 1.7 5 75 SMB
US3MB 3.0 1000 3 1.7 5 75 SMB
US3ABF 3.0 50 3 1 5 50 SMBF
US3BBF 3.0 100 3 1 5 50 SMBF
US3DBF 3.0 200 3 1 5 50 SMBF
US3GBF 3.0 400 3 1.3 5 50 SMBF
US3JBF 3.0 600 3 1.7 5 75 SMBF
US3KBF 3.0 800 3 1.7 5 75 SMBF
US3MBF 3.0 1000 3 1.7 5 75 SMBF
US3A 3.0 50 3 1 5 50 SMC
US3B 3.0 100 3 1 5 50 SMC
US3D 3.0 200 3 1 5 50 SMC
US3G 3.0 400 3 1.3 5 50 SMC
US3J 3.0 600 3 1.7 5 75 SMC
US3K 3.0 800 3 1.7 5 75 SMC
US3M 3.0 1000 3 1.7 5 75 SMC
US5AB 5.0 50 5 1 5 50 SMB
US5BB 5.0 100 5 1 5 50 SMB
US5DB 5.0 200 5 1 5 50 SMB
US5GB 5.0 400 5 1.3 5 50 SMB
US5JB 5.0 600 5 1.7 5 75 SMB
US5KB 5.0 800 5 1.7 5 75 SMB
US5MB 5.0 1000 5 1.7 5 75 SMB
US5A 5.0 50 5 1 5 50 SMC
US5B 5.0 100 5 1 5 50 SMC
US5D 5.0 200 5 1 5 50 SMC
US5G 5.0 400 5 1.3 5 50 SMC
US5J 5.0 600 5 1.7 5 75 SMC
US5K 5.0 800 5 1.7 5 75 SMC
US5M 5.0 1000 5 1.7 5 75 SMC
US6A 6.0 50 5 1 5 50 SMC
US6B 6.0 100 5 1 5 50 SMC
US6D 6.0 200 5 1 5 50 SMC
US6G 6.0 400 5 1.3 5 50 SMC
US6J 6.0 600 5 1.7 5 75 SMC
US6K 6.0 800 5 1.7 5 75 SMC
US6M 6.0 1000 5 1.7 5 75 SMC
DES1A 1.0 50 1 0.95 5 35 SOD123FL
DES1B 1.0 100 1 0.95 5 35 SOD123FL
DES1C 1.0 150 1 0.95 5 35 SOD123FL
DES1D 1.0 200 1 0.95 5 35 SOD123FL
DES1E 1.0 300 1 1.25 5 35 SOD123FL
DES1G 1.0 400 1 1.25 5 35 SOD123FL
DES1J 1.0 600 1 1.7 5 35 SOD123FL
ES1A 1.0 50 1 0.95 5 35 SMA
ES1B 1.0 100 1 0.95 5 35 SMA
ES1C 1.0 150 1 0.95 5 35 SMA
ES1D 1.0 200 1 0.95 5 35 SMA
ES1E 1.0 300 1 1.25 5 35 SMA
ES1G 1.0 400 1 1.25 5 35 SMA
ES1J 1.0 600 1 1.7 5 35 SMA
ES1K 1.0 800 1 3.2 5 35 SMA
ES1M 1.0 1000 1 3.2 5 35 SMA
ES1AF 1.0 50 1 0.95 5 35 SMAF
ES1BF 1.0 100 1 0.95 5 35 SMAF
ES1CF 1.0 100 1 0.95 5 35 SMAF
ES1DF 1.0 200 1 0.95 5 35 SMAF
ES1EF 1.0 300 1 1.25 5 35 SMAF
ES1GF 1.0 400 1 1.25 5 35 SMAF
ES1JF 1.0 600 1 1.7 5 35 SMAF
ES1A-W 1.0 50 1 0.95 5 35 SMA-W
ES1B-W 1.0 100 1 0.95 5 35 SMA-W
ES1C-W 1.0 150 1 0.95 5 35 SMA-W
ES1D-W 1.0 200 1 0.95 5 35 SMA-W
ES1E-W 1.0 300 1 1.25 5 35 SMA-W
ES1G-W 1.0 400 1 1.25 5 35 SMA-W
ES1J-W 1.0 600 1 1.7 5 35 SMA-W
ES1K-W 1.0 800 1 3.2 5 35 SMA-W
ES1M-W 1.0 1000 1 3.2 5 35 SMA-W
ES2AA 2.0 50 2 0.95 5 35 SMA
ES2BA 2.0 100 2 0.95 5 35 SMA
ES2CA 2.0 150 2 0.95 5 35 SMA
ES2DA 2.0 200 2 0.95 5 35 SMA
ES2EA 2.0 300 2 1.25 5 35 SMA
ES2GA 2.0 400 2 1.25 5 35 SMA
ES2JA 2.0 600 2 1.7 5 35 SMA
ES2KA 2.0 800 2 3.2 5 35 SMA
ES2MA 2.0 1000 2 3.2 5 35 SMA
ES2AF 2.0 50 2 0.95 5 35 SMAF
ES2BF 2.0 100 2 0.95 5 35 SMAF
ES2DF 2.0 200 2 0.95 5 35 SMAF
ES2GF 2.0 400 2 1.25 5 35 SMAF
ES2JF 2.0 600 2 1.7 5 35 SMAF
ES2A 2.0 50 2 0.95 5 35 SMB
ES2B 2.0 100 2 0.95 5 35 SMB
ES2C 2.0 150 2 0.95 5 35 SMB
ES2D 2.0 200 2 0.95 5 35 SMB
ES2E 2.0 300 2 1.25 5 35 SMB
ES2G 2.0 400 2 1.25 5 35 SMB
ES2J 2.0 600 2 1.7 5 35 SMB
ES2K 2.0 800 2 3.2 5 35 SMB
ES2M 2.0 1000 2 3.2 5 35 SMB
ES2ABF 2.0 50 2 0.95 5 35 SMBF
ES2BBF 2.0 100 2 0.95 5 35 SMBF
ES2CBF 2.0 150 2 0.95 5 35 SMBF
ES2DBF 2.0 200 2 0.95 5 35 SMBF
ES2EBF 2.0 300 2 1.25 5 35 SMBF
ES2GBF 2.0 400 2 1.25 5 35 SMBF
ES2JBF 2.0 600 2 1.7 5 35 SMBF
ES3AA 3.0 50 3 0.95 10 35 SMA
ES3BA 3.0 100 3 0.95 10 35 SMA
ES3CA 3.0 150 3 0.95 10 35 SMA
ES3DA 3.0 200 3 0.95 10 35 SMA
ES3EA 3.0 300 3 1.25 10 35 SMA
ES3GA 3.0 400 3 1.25 10 35 SMA
ES3JA 3.0 600 3 1.7 10 35 SMA
ES3AB 3.0 50 3 0.95 10 35 SMB
ES3BB 3.0 100 3 0.95 10 35 SMB
ES3CB 3.0 150 3 0.95 10 35 SMB
ES3DB 3.0 200 3 0.95 10 35 SMB
ES3EB 3.0 300 3 1.25 10 35 SMB
ES3GB 3.0 400 3 1.25 10 35 SMB
ES3JB 3.0 600 3 1.7 10 35 SMB
ES3KB 3.0 400 3 3.2 10 35 SMB
ES3MB 3.0 600 3 3.2 10 35 SMB
ES3ABF 3.0 50 3 0.95 10 35 SMBF
ES3BBF 3.0 100 3 0.95 10 35 SMBF
ES3CBF 3.0 150 3 0.95 10 35 SMBF
ES3DBF 3.0 200 3 0.95 10 35 SMBF
ES3EBF 3.0 300 3 1.25 10 35 SMBF
ES3GBF 3.0 400 3 1.25 10 35 SMBF
ES3JBF 3.0 600 3 1.7 10 35 SMBF
ES3A 3.0 50 3 0.95 10 35 SMC
ES3B 3.0 100 3 0.95 10 35 SMC
ES3C 3.0 150 3 0.95 10 35 SMC
ES3D 3.0 200 3 0.95 10 35 SMC
ES3E 3.0 300 3 1.25 10 35 SMC
ES3G 3.0 400 3 1.25 10 35 SMC
ES3J 3.0 600 3 1.7 10 35 SMC
ES3K 3.0 400 3 3.2 10 35 SMC
ES3M 3.0 600 3 3.2 10 35 SMC
ES5AB 5.0 50 3 0.95 10 35 SMB
ES5BB 5.0 100 3 0.95 10 35 SMB
ES5CB 5.0 150 3 0.95 10 35 SMB
ES5DB 5.0 200 3 0.95 10 35 SMB
ES5EB 5.0 300 3 1.25 10 35 SMB
ES5GB 5.0 400 3 1.25 10 35 SMB
ES5JB 5.0 600 3 1.7 10 35 SMB
ES5KB 5.0 800 3 3.2 10 35 SMB
ES5MB 5.0 1000 3 3.2 10 35 SMB
ES5A 5.0 50 3 0.95 10 35 SMC
ES5B 5.0 100 3 0.95 10 35 SMC
ES5C 5.0 150 3 0.95 10 35 SMC
ES5D 5.0 200 3 0.95 10 35 SMC
ES5E 5.0 300 3 1.25 10 35 SMC
ES5G 5.0 400 3 1.25 10 35 SMC
ES5J 5.0 600 3 1.7 10 35 SMC
ES5K 5.0 800 3 3.2 10 35 SMC
ES5M 5.0 1000 3 3.2 10 35 SMC
ES6A 6.0 50 3 0.95 10 35 SMC
ES6B 6.0 100 3 0.95 10 35 SMC
ES6C 6.0 150 3 0.95 10 35 SMC
ES6D 6.0 200 3 0.95 10 35 SMC
ES6E 6.0 300 3 1.25 10 35 SMC
ES6G 6.0 400 3 1.25 10 35 SMC
ES6J 6.0 600 3 1.7 10 35 SMC
SS12-W 1.0 20 1 0.55 500   SMA-W
SS14-W 1.0 40 1 0.55 500   SMA-W
SS16-W 1.0 60 1 0.7 500   SMA-W
SS110-W 1.0 100 1 0.85 100   SMA-W
SS115-W 1.0 150 1 0.92 100   SMA-W
SS120-W 1.0 200 1 0.95 100   SMA-W
SS12 1.0 20 1 0.55 500   SMA
SS14 1.0 40 1 0.55 500   SMA
SS16 1.0 60 1 0.7 500   SMA
SS110 1.0 100 1 0.85 100   SMA
SS115 1.0 150 1 0.92 100   SMA
SS120 1.0 200 1 0.95 100   SMA
DSS12 1.0 20 1 0.55 500   SOD123FL
DSS14 1.0 40 1 0.55 500   SOD123FL
DSS16 1.0 60 1 0.7 500   SOD123FL
DSS110 1.0 100 1 0.85 100   SOD123FL
DSS115 1.0 150 1 0.92 100   SOD123FL
DSS120 1.0 200 1 0.95 100   SOD123FL
DTSS14L 1.0 40 1 0.4 500   SOD123FL
DTSS16L 1.0 60 1 0.5 500   SOD123FL
TSS14L 1.0 40 1 0.4 500   SMA
TSS16L 1.0 60 1 0.5 500   SMA
SS12F 1.0 20 1 0.55 500   SMAF
SS14F 1.0 40 1 0.55 500   SMAF
SS16F 1.0 60 1 0.7 500   SMAF
SS110F 1.0 100 1 0.85 100   SMAF
SS115F 1.0 150 1 0.92 100   SMAF
SS120F 1.0 200 1 0.95 100   SMAF
SS22A 2.0 20 2 0.55 500   SMA
SS24A 2.0 40 2 0.55 500   SMA
SS26A 2.0 60 2 0.7 500   SMA
SS210A 2.0 100 2 0.85 100   SMA
SS215A 2.0 150 2 0.92 100   SMA
SS220A 2.0 200 2 0.95 100   SMA
SS22F 2.0 20 2 0.55 500   SMAF
SS24F 2.0 40 2 0.55 500   SMAF
SS26F 2.0 60 2 0.7 500   SMAF
SS210F 2.0 100 2 0.85 100   SMAF
SS215F 2.0 150 2 0.92 100   SMAF
SS220F 2.0 200 2 0.95 100   SMAF
DSS24L 2.0 40 2 0.47 500   SOD123FL
DSS26L 2.0 60 2 0.55 500   SOD123FL
DTSS24L 2.0 40 2 0.4 500   SOD123FL
DTSS26L 2.0 60 2 0.5 500   SOD123FL
SS24LA 2.0 40 2 0.47 500   SMA
SS26LA 2.0 60 2 0.55 500   SMA
TSS24LA 2.0 40 2 0.4 500   SMA
TSS26LA 2.0 60 2 0.5 500   SMA
SS24L 2.0 40 2 0.47 500   SMB
SS26L 2.0 60 2 0.55 500   SMB
TSS24L 2.0 40 2 0.4 500   SMB
TSS26L 2.0 60 2 0.5 500   SMB
SS22A-W 2.0 20 2 0.55 500   SMA-W
SS24A-W 2.0 40 2 0.55 500   SMA-W
SS26A-W 2.0 60 2 0.7 500   SMA-W
SS210A-W 2.0 100 2 0.85 100   SMA-W
SS215A-W 2.0 150 2 0.92 100   SMA-W
SS220A-W 2.0 200 2 0.95 100   SMA-W
SS22 2.0 20 2 0.55 500   SMB
SS24 2.0 40 2 0.55 500   SMB
SS26 2.0 60 2 0.7 500   SMB
SS210 2.0 100 2 0.85 100   SMB
SS215 2.0 150 2 0.92 100   SMB
SS220 2.0 200 2 0.95 100   SMB
SS22-W 2.0 20 2 0.55 500   SMB-W
SS24-W 2.0 40 2 0.55 500   SMB-W
SS26-W 2.0 60 2 0.7 500   SMB-W
SS210-W 2.0 100 2 0.85 100   SMB-W
SS215-W 2.0 150 2 0.92 100   SMB-W
SS220-W 2.0 200 2 0.95 100   SMB-W
DSS22 2.0 20 2 0.55 500   SOD123FL
DSS24 2.0 40 2 0.55 500   SOD123FL
DSS26 2.0 60 2 0.7 500   SOD123FL
DSS210 2.0 100 2 0.85 100   SOD123FL
DSS215 2.0 150 2 0.92 100   SOD123FL
DSS220 2.0 200 2 0.95 100   SOD123FL
DSS32 3.0 20 3 0.55 500.0   SOD123FL
DSS34 3.0 40 3 0.55 500.0   SOD123FL
DSS36 3.0 60 3 0.7 500.0   SOD123FL
DSS310 3.0 100 3 0.85 100.0   SOD123FL
DSS315 3.0 150 3 0.92 100.0   SOD123FL
DSS320 3.0 200 3 0.95 100.0   SOD123FL
SS32A 3.0 20 3 0.55 500.0   SMA
SS34A 3.0 40 3 0.55 500.0   SMA
SS36A 3.0 60 3 0.7 500.0   SMA
SS310A 3.0 100 3 0.85 100.0   SMA
SS315A 3.0 150 3 0.92 100.0   SMA
SS320A 3.0 200 3 0.95 100.0   SMA
SS32F 3.0 20 3 0.55 500.0   SMAF
SS34F 3.0 40 3 0.55 500.0   SMAF
SS36F 3.0 60 3 0.7 500.0   SMAF
SS310F 3.0 100 3 0.85 100.0   SMAF
SS315F 3.0 150 3 0.92 100.0   SMAF
SS320F 3.0 200 3 0.95 100.0   SMAF
SS34LA 3.0 40 3 0.47 500   SMA
SS36LA 3.0 60 3 0.55 500   SMA
SS310LA 3.0 100 3 0.75 500   SMA
SBR34LA 3.0 40 3 0.45 500   SMA
SBR36LA 3.0 60 3 0.52 500   SMA
TSS34LA 3.0 40 3 0.4 500   SMA
TSS36LA 3.0 60 3 0.5 500   SMA
TSS310LA 3.0 100 3 0.65 500   SMA
TSS34LF 3.0 40 3 0.4 500   SMAF
TSS36LF 3.0 60 3 0.5 500   SMAF
TSS310LF 3.0 100 3 0.65 500   SMAF
SS32A-W 3.0 20 3 0.55 500.0   SMA-W
SS34A-W 3.0 40 3 0.55 500.0   SMA-W
SS36A-W 3.0 60 3 0.7 500.0   SMA-W
SS310A-W 3.0 100 3 0.85 100.0   SMA-W
SS315A-W 3.0 150 3 0.92 100.0   SMA-W
SS320A-W 3.0 200 3 0.95 100.0   SMA-W
SS32B 3.0 20 3 0.55 500.0   SMB
SS34B 3.0 40 3 0.55 500.0   SMB
SS36B 3.0 60 3 0.7 500.0   SMB
SS310B 3.0 100 3 0.85 100.0   SMB
SS315B 3.0 150 3 0.92 100.0   SMB
SS320B 3.0 200 3 0.95 100.0   SMB
SS34LB 3.0 40 3 0.47 500   SMB
SS36LB 3.0 60 3 0.55 500   SMB
SS310LB 3.0 100 3 0.75 500   SMB
SBR34LB 3.0 40 3 0.45 500   SMB
SBR36LB 3.0 60 3 0.52 500   SMB
TSS34LB 3.0 40 3 0.4 500   SMB
TSS36LB 3.0 60 3 0.5 500   SMB
TSS310LB 3.0 100 3 0.65 500   SMB
TSS34LB 3.0 40 3 0.4 500   SMB
TSS36LB 3.0 60 3 0.5 500   SMB
TSS310LB 3.0 100 3 0.65 500   SMB
SS32BF 3.0 20 3 0.55 500.0   SMBF
SS34BF 3.0 40 3 0.55 500.0   SMBF
SS36BF 3.0 60 3 0.7 500.0   SMBF
SS310BF 3.0 100 3 0.85 100.0   SMBF
SS315BF 3.0 150 3 0.92 100.0   SMBF
SS320BF 3.0 200 3 0.95 100.0   SMBF
SS32B-W 3.0 20 3 0.55 500.0   SMB-W
SS34B-W 3.0 40 3 0.55 500.0   SMB-W
SS36B-W 3.0 60 3 0.7 500.0   SMB-W
SS310B-W 3.0 100 3 0.85 100.0   SMB-W
SS315B-W 3.0 150 3 0.92 100.0   SMB-W
SS320B-W 3.0 200 3 0.95 100.0   SMB-W
SS32 3.0 20 3 0.55 500.0   SMC
SS34 3.0 40 3 0.55 500.0   SMC
SS36 3.0 60 3 0.7 500.0   SMC
SS310 3.0 100 3 0.85 100.0   SMC
SS315 3.0 150 3 0.92 100.0   SMC
SS320 3.0 200 3 0.95 100.0   SMC
SS52A 5.0 20 5 0.55 500   SMA
SS54A 5.0 40 5 0.55 500   SMA
SS56A 5.0 60 5 0.7 500   SMA
SS510A 5.0 100 5 0.85 100   SMA
SS515A 5.0 150 5 0.92 100   SMA
SS520A 5.0 200 5 0.95 100   SMA
SS52B-W 5.0 20 5 0.55 500   SMB-W
SS54B-W 5.0 40 5 0.55 500   SMB-W
SS56B-W 5.0 60 5 0.7 500   SMB-W
SS510B-W 5.0 100 5 0.85 100   SMB-W
SS515B-W 5.0 150 5 0.92 100   SMB-W
SS520B-W 5.0 200 5 0.95 100   SMB-W
SS52B 5.0 20 5 0.55 500   SMB
SS54B 5.0 40 5 0.55 500   SMB
SS56B 5.0 60 5 0.7 500   SMB
SS510B 5.0 100 5 0.85 100   SMB
SS515B 5.0 150 5 0.92 100   SMB
SS520B 5.0 200 5 0.95 100   SMB
SS54LB 5.0 40 5.0 0.47 500.0   SMB
SS56LB 5.0 60 5.0 0.55 500.0   SMB
SS510LB 5.0 100 5.0 0.75 500.0   SMB
SBR54LB 5.0 40 5.0 0.45 500.0   SMB
SBR56LB 5.0 60 5.0 0.52 500.0   SMB
TSS54LB 5.0 40 5.0 0.40 500.0   SMB
TSS56LB 5.0 60 5.0 0.50 500.0   SMB
TSS510LB 5.0 100 5.0 0.65 500.0   SMB
SS52BF 5.0 20 5 0.55 500   SMBF
SS54BF 5.0 40 5 0.55 500   SMBF
SS56BF 5.0 60 5 0.7 500   SMBF
SS510BF 5.0 100 5 0.85 100   SMBF
SS515BF 5.0 150 5 0.92 100   SMBF
SS520BF 5.0 200 5 0.95 100   SMBF
SS52 5.0 20 5 0.55 500   SMC
SS54 5.0 40 5 0.55 500   SMC
SS56 5.0 60 5 0.7 500   SMC
SS510 5.0 100 5 0.85 100   SMC
SS515 5.0 150 5 0.92 100   SMC
SS520 5.0 200 5 0.95 100   SMC
SS1040 10.0 40 10.0 0.55 500   SMC
SS1060 10.0 60 10.0 0.7 500   SMC
SS10100 10.0 100 10.0 0.85 100   SMC
SS10150 10.0 150 10.0 0.92 100   SMC
SS10200 10.0 200 10.0 0.95 100   SMC

Typical Models Download

KOT ELECTRONIC PRODUCT CONTENT

Related products
