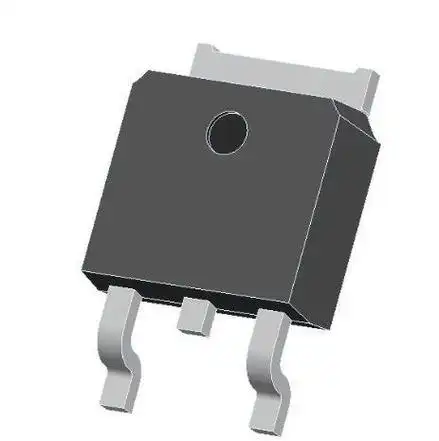

Fast Recovery Epitaxial Diode

Fast Recovery Epitaxial Diode

Description

  • Mfr Part: MURXXXFC MURXXXFCT MURXXXFCTA MURXXXC MURXXXXCT MURXXXXPT MURXXXXXXP MURXXXXV MURXXXXCS MURXXXXCD
  • Package: ITO-220AB ITO-220AC TO-220AB TO-220AC TO-247AB TO-247AC TO-251 TO-252 TO-263
  • Feature: Produced by Changzhou factory under our own brand, all components meet international standards, offering reliable performance and competitive pricing.
  • Note: The other package or parameter can be made according to customer’s requirement, please send the data sheet or parameter by mail to sales@kotelectronic.com
Category: Tag: Brand:
Spread the love
Spread the love

Fast Recovery Epitaxial Diodes deliver high-speed switching and low reverse recovery time, making them ideal for high-frequency and efficient power conversion applications. Designed for reliability and performance in demanding environments.

Main Applications

Fast Recovery Epitaxial Diodes (FREDs) are mainly used in high-frequency rectification, freewheeling diodes in motor drives, snubber circuits, and switching power supplies. With fast reverse recovery time, low switching loss, and high efficiency, they are widely applied in inverters, DC-DC converters, UPS, and industrial power electronics.



Typical Models

Part Number IF_Max VRM_Max IFSM_Max IF VF_Max IR_Max TRR_Max TJ Package
(A) (V) (A) (A) (V) (uA) (ns) (℃)
MUR420V 4 200 50 4 0.9 2 25 150 TO-251
MUR460CS 4 600 50 4 1.6 10 35 150 TO-252
MUR520FC 5 200 80 5 0.95 2 25 150 ITO-220AC
MUR520C 5 200 80 5 0.95 2 25 150 TO-220AC
MUR520V 5 200 80 5 0.95 2 25 150 TO-251
MUR520CS 5 200 80 5 0.95 2 25 150 TO-252
MUR530FC 5 300 80 5 1.3 10 25 150 ITO-220AC
MUR530C 5 300 80 5 1.3 10 25 150 TO-220AC
MUR530V 5 300 80 5 1.3 10 25 150 TO-251
MUR530CS 5 300 80 5 1.3 10 35 150 TO-252
MUR540FC 5 400 80 5 1.4 10 35 150 ITO-220AC
MUR540C 5 400 80 5 1.4 10 35 150 TO-220AC
MUR540V 5 400 80 5 1.4 10 35 150 TO-251
MUR540CS 5 400 80 5 1.4 10 35 150 TO-252
MUR560FC 5 600 80 5 1.6 10 35 150 ITO-220AC
MUR560C 5 600 80 5 1.6 10 35 150 TO-220AC
MUR560V 5 600 80 5 1.6 10 35 150 TO-251
MUR560CS 5 600 80 5 1.6 10 35 150 TO-252
MUR820C 8 200 125 8 0.95 2 25 150 TO-220AC
MUR820FC 8 200 125 8 0.95 2 25 150 ITO-220AC
MUR820CS 8 200 125 8 0.95 2 25 150 TO-252
MUR820CD 8 200 125 8 0.95 2 25 150 TO-263
MUR830C 8 300 125 8 1.25 10 35 150 TO-220AC
MUR830FC 8 300 125 8 1.25 10 35 150 ITO-220AC
MUR340V 8 300 125 8 1.25 10 35 150 TO-251
MUR830CS 8 300 125 8 1.25 10 35 150 TO-252
MUR830CD 8 300 125 8 1.25 10 35 150 TO-263
MUR840C 8 400 125 8 1.4 10 35 150 TO-220AC
MUR840FC 8 400 125 8 1.4 10 35 150 ITO-220AC
MUR840V 8 400 125 8 1.4 10 35 150 TO-251
MUR840CS 8 400 125 8 1.4 10 35 150 TO-252
MUR840CD 8 400 125 8 1.4 10 35 150 TO-263
MUR860FC 8 600 125 8 1.6 10 35 150 ITO-220AC
MUR860C 8 600 125 8 1.6 10 35 150 TO-220AC
MUR860V 8 600 125 8 1.6 10 35 150 TO-251
MUR860CS 8 600 125 8 1.6 10 35 150 TO-252
MUR8T60CS 8 600 125 8 2.3 10 25 150 TO-252
MURFC865FC 8 650 125 8 1.8 3 35 150 ITO-220AC
MURF865C 8 650 125 8 1.8 3 35 150 TO-220AC
MUR880C 8 800 125 8 1.7 5 45 150 TO-220AC
MUR8H120C 8 1200 125 8 2.8 5 40 150 TO-220AC
MUR1020C 10 200 150 10 1.0 2 25 150 TO-220AC
MUR1020CS 10 200 100 5 1.0 2 25 150 TO-252
MUR1020CD 10 200 100 5 1.0 2 25 150 TO-263
MUR1020FCT 10 200 100 5 0.90 2 25 150 ITO-220AB
MUR1020CT 10 200 100 5 0.90 2 25 150 TO-220AB
MUR1020FC 10 200 150 10 1.0 2 25 150 ITO-220AC
MUR1030FCT 10 300 100 5 1.3 10 25 150 ITO-220AB
MUR1030CT 10 300 100 5 1.3 10 25 150 TO-220AB
MUR1030FC 10 300 150 10 1.3 10 35 150 ITO-220AC
MUR1030C 10 300 150 10 1.3 10 35 150 TO-220AC
MUR1030V 10 300 100 5 1.3 10 35 150 TO-251
MUR1030CS 10 300 100 5 1.3 10 35 150 TO-252
MUR1030CD 10 300 100 5 1.3 5 35 150 TO-263
MUR1040FCT 10 400 100 5 1.4 10 35 150 ITO-220AB
MUR1040CT 10 400 100 5 1.4 10 35 150 TO-220AB
MUR1040FC 10 400 150 10 1.4 10 35 150 ITO-220AC
MUR1040C 10 400 150 10 1.4 10 35 150 TO-220AC
MUR1040V 10 400 100 5 1.4 10 35 150 TO-251
MUR1040CS 10 400 100 5 1.4 10 35 150 TO-252
MUR1040CD 10 400 100 5 1.4 5 35 150 TO-263
MUR1060FCT 10 600 100 5 1.6 10 35 150 ITO-220AB
MUR1060CT 10 600 100 5 1.6 10 35 150 TO-220AB
MUR1060FC 10 600 150 10 1.6 10 35 150 ITO-220AC
MUR1060C 10 600 150 10 1.6 10 35 150 TO-220AC
MUR1060V 10 600 100 5 1.6 10 35 150 TO-251
MUR1060CS 10 600 100 5 1.6 10 35 150 TO-252
MUR1060CD 10 600 100 5 1.6 5 35 150 TO-263
MURFC1065FC 10 650 150 10 1.8 3 35 150 ITO-220AC
MURF1065C 10 650 150 10 1.8 3 35 150 TO-220AC
MUR10120C 10 1200 150 10 2.4 5 55 150 TO-220AC
MUR1560C 15 600 200 15 2.35 10 30 150 TO-220AC
MUR1560CD 15 600 200 15 2.35 3 30 150 TO-263
MUR15H120C 15 1200 200 15 3.3 5 50 150 TO-220AC
MUR1620FCT 16 200 150 8 1.0 2 25 150 ITO-220AB
MUR1620CT 16 200 150 8 1.0 2 25 150 TO-220AB
MUR1620FC 16 200 200 16 1.0 2 30 150 ITO-220AC
MUR1620C 16 200 200 16 1.0 2 30 150 TO-220AC
MUR1620CD 16 200 200 16 1.0 2 30 150 TO-263
MUR1620CS 16 200 200 16 1.0 2 30 150 TO-252
MUR1630CT 16 300 125 8 1.25 10 35 150 TO-220AB
MUR1630FCT 16 300 125 8 1.25 10 35 150 ITO-220AB
MUR1630FC 16 300 200 16 1.3 10 50 150 ITO-220AC
MUR1630C 16 300 200 16 1.3 10 50 150 TO-220AC
MUR1630CD 16 300 200 16 1.3 5 50 150 TO-263
MUR1640CT 16 400 125 8 1.4 10 35 150 TO-220AB
MUR1640FCT 16 400 125 8 1.4 10 35 150 ITO-220AB
MUR1640FC 16 400 200 16 1.4 10 35 150 ITO-220AC
MUR1640C 16 400 200 16 1.4 10 35 150 TO-220AC
MUR1640CD 16 400 200 16 1.4 5 35 150 TO-263
MUR1660FCT 16 600 125 8 1.6 10 35 150 ITO-220AB
MUR1660CT 16 600 125 8 1.6 10 35 150 TO-220AB
MUR1660FC 16 600 200 16 2.35 10 50 150 ITO-220AC
MUR1660C 16 600 200 16 2.35 10 50 150 TO-220AC
MUR1660CS 16 600 200 16 1.6 10 50 150 TO-252
MUR1660CD 16 600 200 16 1.6 5 50 150 TO-263
MURF1665FCT 16 650 125 8 1.8 3 35 150 ITO-220AB
MURF1665CT 16 650 125 8 1.8 3 35 150 TO-220AB
MUR1680CT 16 800 125 8 1.7 5 45 150 TO-220AB
MUR2020FCT 20 200 150 10 1.0 2 25 150 ITO-220AB
MUR2020CT 20 200 150 10 1.0 2 25 150 TO-220AB
MUR2020FC 20 200 200 20 1.0 2 30 150 ITO-220AC
MUR2020C 20 200 200 20 1.0 2 30 150 TO-220AC
MUR2020CD 20 200 200 20 1.0 2 30 150 TO-263
MUR2030FCT 20 300 150 10 1.3 10 35 150 ITO-220AB
MUR2030CT 20 300 150 10 1.3 10 35 150 TO-220AB
MUR2030FC 20 300 200 20 1.1 10 50 150 ITO-220AC
MUR2030C 20 300 200 20 1.1 10 50 150 TO-220AC
MUR2030CD 20 300 200 20 1.3 10 35 150 TO-263
MUR2040CT 20 400 200 10 1.25 10 35 150 TO-220AB
MUR2040FCT 20 400 200 10 1.25 10 35 150 ITO-220AB
MUR2040FC 20 400 200 20 1.25 10 50 150 ITO-220AC
MUR2040C 20 400 200 20 1.25 10 50 150 TO-220AC
MUR2040CD 20 400 200 20 1.25 5 35 150 TO-263
MUR2060FCTA 20 600 150 10 1.6 10 35 150 ITO-220AB
MUR2060FCT 20 600 150 10 1.6 10 35 150 ITO-220AB
MUR2060CTA 20 600 150 10 1.6 10 35 150 TO-220AB
MUR2060CT 20 600 150 10 1.6 10 35 150 TO-220AB
MUR2060FC 20 600 200 20 1.6 10 35 150 ITO-220AC
MUR2060C 20 600 200 20 1.6 10 35 150 TO-220AC
MURF2065FCT 20 650 150 10 1.8 3 35 150 ITO-220AB
MURF2065CT 20 650 150 10 1.8 3 35 150 TO-220AB
MUR20H120C 20 1200 200 20 3.3 5 55 150 TO-220AC
MUR2520P 25 200 250 25 1.0 1 35 150 TO-247AC
MUR3030PT 30 300 250 15 1.25 10 50 150 TO-247AB
MUR3040C 30 400 300 30 1.4 10 50 150 TO-220AC
MUR3040CT 30 400 250 15 1.4 10 50 150 TO-220AB
MUR3040PT 30 400 250 15 1.4 10 50 150 TO-247AB
MUR3060PT 30 600 250 15 2.35 3 30 150 TO-247AB
MUR3020P 30 200 300 30 1.0 1 50 150 TO-247AC
MUR3060P 30 600 300 30 1.6 3 50 150 TO-247AC
MUR3060C 30 600 300 30 1.6 3 50 150 TO-220AC
MUR30H120C 30 1200 300 30 3.3 5 60 150 TO-220AC
MUR3520P 35 200 350 35 1.0 1 50 150 TO-247AC
MUR4020P 40 200 400 40 1.0 1 50 150 TO-247AC
MUR4060P 40 600 400 40 1.6 10 50 150 TO-247AC
MUR4060C 40 600 400 40 1.6 10 50 150 TO-220AC
MUR4060PT 40 600 250 20 1.6 10 35 150 TO-247AB
MUR5020PT 50 200 300 25 1.0 1 35 150 TO-247AB
MUR6020PT 60 200 300 30 1.0 1 50 150 TO-247AB
MUR6040PT 60 400 300 30 1.4 10 50 150 TO-247AB
MUR6060PT 60 600 300 30 1.6 10 50 150 TO-247AB
MUR7020PT 70 200 400 35 1.0 1 50 150 TO-247AB
MUR8020PT 80 200 400 40 1.0 1 50 150 TO-247AB
MUR75170P 75 1700 750 75 2.8 5 200 150 TO-247AC
MUR100170P 100 1700 1000 100 2.8 5 250 150 TO-247AC
MUR150170P 150 1700 1500 150 2.8 5 280 150 TO-247AC
MUR200170P 200 1700 2000 200 2.8 5 350 150 TO-247AC

Typical Models Download
