SiC MOSFET

SiC MOSFET

Description

  • Mfr Part: LSCXXXXXXPT/P4/D7 LSCXXXX65Y

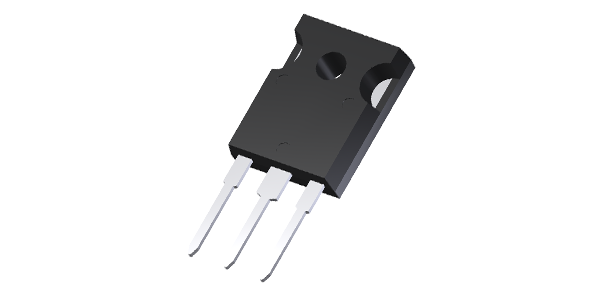

  • Package: TO-247-3 TO-247-4 TO-263-7 TOLL
  • Feature: Produced by Changzhou factory under our own brand, all components meet international standards, offering reliable performance and competitive pricing.
  • Note: The other package or parameter can be made according to customer’s requirement, please send the data sheet or parameter to sales@kotelectronic.com
Category: Tag: Brand:
Spread the love
Spread the love

SiC MOSFETs deliver superior efficiency, high voltage tolerance, and fast switching performance, making them ideal for demanding applications such as EV powertrains, renewable energy systems, and industrial power conversion.

Main Applications

SiC MOSFETs are widely used in solar inverters, electric vehicle chargers and drivetrains, energy storage systems, industrial motor drives, UPS, data center and telecom power supplies, and PFC circuits. With low conduction loss, high switching speed, and superior thermal performance, they deliver higher efficiency, compact design, and reliable operation for advanced power electronics applications.

Parameter

Part Number VDSS(V) RDS(on)
(mΩ)		 Drain Current
TC=25℃
(A)		 VGS(th)
Typ(V)		 Gate
Charge
Total
Qg(nc)		 Total
Power
Dissipation
PTOT(W)		 Junction
Temperature
TJ(MAX)
(℃ )		 Package
LSC020065PT 650 20 92 2.6 187 312 175 TO-247-3
LSC030065PT 650 30 66 2.6 110 187 175 TO-247-3
LSCA040065PT 650 40 50 2.6 80 178 175 TO-247-3
LSC060065PT 650 60 41 2.6 50 150 175 TO-247-3
LSC020065P4 650 20 92 2.6 187 312 175 TO-247-4
LSC030065P4 650 30 66 2.6 110 187 175 TO-247-4
LSCA040065P4 650 40 50 2.6 80 178 175 TO-247-4
LSC060065P4 650 60 41 2.6 50 150 175 TO-247-4
LSC020065CD7 650 20 92 2.6 187 312 175 TO-263-7
LSC030065CD7 650 30 66 2.6 110 187 175 TO-263-7
LSCA040065CD7 650 40 50 2.6 80 178 175 TO-263-7
LSC060065CD7 650 60 41 2.6 50 150 175 TO-263-7
LSC030065Y 650 30 66 2.6 110 187 175 TOLL
LSCA040065Y 650 40 50 2.6 80 178 175 TOLL
LSC060065Y 650 60 41 2.6 50 150 175 TOLL
LSC060090PT 900 60 39 2.6 61 153 175 TO-247-3
LSC060090P4 900 60 39 2.6 61 153 175 TO-247-4
LSC060090CD7 900 60 39 2.6 61 153 175 TO-263-7
LSCA016120PT 1200 16 120 2.6 269 576 175 TO-247-3
LSCA020120PT 1200 20 100 2.6 237 468 175 TO-247-3
LSCA030120PT 1200 30 75 2.6 155 334 175 TO-247-3
LSC040120PT 1200 40 62 2.6 112 269 175 TO-247-3
LSCA040120PT 1200 40 65 2.6 120 375 175 TO-247-3
LSC075120PT 1200 75 33 2.6 103 136 175 TO-247-3
LSCA080120PT 1200 80 36 2.6 79 192 175 TO-247-3
LSCA140120PT 1200 140 19 2.6 36 98 175 TO-247-3
LSCA016120P4 1200 16 120 2.6 269 576 175 TO-247-4
LSCA020120P4 1200 20 100 2.6 237 468 175 TO-247-4
LSCA030120P4 1200 30 75 2.6 155 334 175 TO-247-4
LSC040120P4 1200 40 62 2.6 112 269 175 TO-247-4
LSCA040120P4 1200 40 65 2.6 120 375 175 TO-247-4
LSC075120P4 1200 75 33 2.6 103 136 175 TO-247-4
LSCA080120P4 1200 80 36 2.6 79 192 175 TO-247-4
LSCA140120P4 1200 140 19 2.6 36 98 175 TO-247-4
LSCA030120CD7 1200 30 75 2.6 155 334 175 TO-263-7
LSC040120CD7 1200 40 62 2.6 112 269 175 TO-263-7
LSCA040120CD7 1200 40 65 2.6 120 375 175 TO-263-7
LSC075120CD7 1200 75 33 2.6 103 136 175 TO-263-7
LSCA140120CD7 1200 140 19 2.6 36 98 175 TO-263-7
LSCA020170PT 1700 20 119 3 349 714 175 TO-247-3
LSCA040170PT 1700 40 67 3 179 357 175 TO-247-3
LSCA080170PT 1700 80 32 3 82 238 175 TO-247-3
LSCA650170PT 1700 650 7 2.6 23 69 150 TO-247-3
LSCA01K170PT 1700 1000 5 2.6 21.8 69 150 TO-247-3
LSCA020170P4 1700 20 119 3 349 714 175 TO-247-4
LSCA040170P4 1700 40 67 3 179 357 175 TO-247-4
LSCA080170P4 1700 80 32 3 82 238 175 TO-247-4
LSCA040170CD7 1700 40 67 3 179 357 175 TO-263-7
LSCA080170CD7 1700 80 32 3 82 238 175 TO-263-7
LSCA650170CD7 1700 650 7 2.6 23 69 150 TO-263-7
LSCA01K170CD7 1700 1000 5 2.6 21.8 69 150 TO-263-7
LSCA024200PT 2000 24 101 3 351 714 175 TO-247-3
LSCA050200PT 2000 50 49 3 168 341 175 TO-247-3
LSCA100200PT 2000 100 29 3 84 238 175 TO-247-3
LSCA024200P4 2000 24 101 3 351 714 175 TO-247-4
LSCA050200P4 2000 50 49 3 168 341 175 TO-247-4
LSCA100200P4 2000 100 29 3 84 238 175 TO-247-4
LSCA050200CD7 2000 50 49 3 168 341 175 TO-263-7
LSCA100200CD7 2000 100 29 3 84 238 175 TO-263-7
