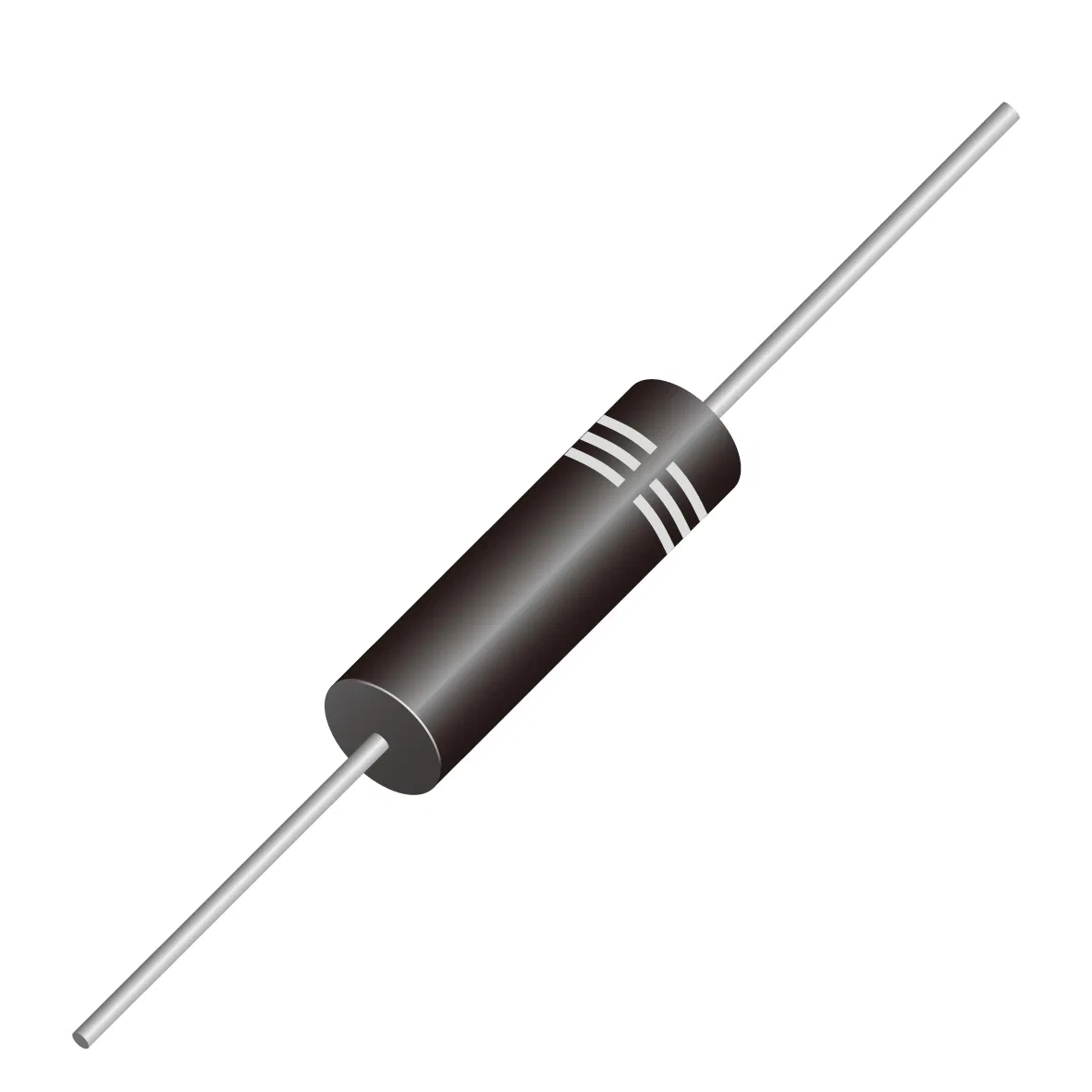

High voltage trigger diodes provide precise triggering performance with stable breakdown characteristics, designed for use in ignition circuits, pulse generators, and overvoltage protection applications.
| Part Number | VDRM | IDRM | I t | I tsm | IH | VBO_Min | VBO_Max | Package |
| (V) | (uA) | (A) | (A) | (mA) | (V) | (V) | ||
| K090R1 | 70 | 1 | ± 1.0 | ± 4.0 | 50 | 79 | 97 | R-1 |
| K105R1 | 90 | 1 | ± 1.0 | ± 4.0 | 50 | 95 | 110 | R-1 |
| K110R1 | 95 | 1 | ± 1.0 | ± 4.0 | 50 | 104 | 118 | R-1 |
| K120R1 | 100 | 1 | ± 1.0 | ± 4.0 | 50 | 110 | 125 | R-1 |
| K130R1 | 110 | 1 | ± 1.0 | ± 4.0 | 50 | 120 | 138 | R-1 |
| K140R1 | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 130 | 146 | R-1 |
| K150R1 | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 142 | 157 | R-1 |
| K160R1 | 130 | 1 | ± 1.0 | ± 4.0 | 50 | 140 | 170 | R-1 |
| K180R1 | 160 | 1 | ± 1.0 | ± 4.0 | 50 | 165 | 195 | R-1 |
| K200R1 | 180 | 1 | ± 1.0 | ± 4.0 | 50 | 190 | 215 | R-1 |
| K220R1 | 190 | 1 | ± 1.0 | ± 4.0 | 50 | 205 | 230 | R-1 |
| K240R1 | 200 | 1 | ± 1.0 | ± 4.0 | 50 | 220 | 250 | R-1 |
| K260R1 | 220 | 1 | ± 1.0 | ± 4.0 | 50 | 240 | 280 | R-1 |
| K090D5 | 70 | 1 | ± 1.0 | ± 4.0 | 50 | 79 | 97 | DO-15 |
| K105D5 | 90 | 1 | ± 1.0 | ± 4.0 | 50 | 95 | 110 | DO-15 |
| K110D5 | 95 | 1 | ± 1.0 | ± 4.0 | 50 | 104 | 118 | DO-15 |
| K120D5 | 100 | 1 | ± 1.0 | ± 4.0 | 50 | 110 | 125 | DO-15 |
| K130D5 | 110 | 1 | ± 1.0 | ± 4.0 | 50 | 120 | 138 | DO-15 |
| K140D5 | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 130 | 146 | DO-15 |
| K150D5 | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 142 | 157 | DO-15 |
| K160D5 | 130 | 1 | ± 1.0 | ± 4.0 | 50 | 140 | 170 | DO-15 |
| K180D5 | 160 | 1 | ± 1.0 | ± 4.0 | 50 | 165 | 195 | DO-15 |
| K200D5 | 180 | 1 | ± 1.0 | ± 4.0 | 50 | 190 | 215 | DO-15 |
| K220D5 | 190 | 1 | ± 1.0 | ± 4.0 | 50 | 205 | 230 | DO-15 |
| K240D5 | 200 | 1 | ± 1.0 | ± 4.0 | 50 | 220 | 250 | DO-15 |
| K260D5 | 220 | 1 | ± 1.0 | ± 4.0 | 50 | 240 | 280 | DO-15 |
| K090SD | 70 | 1 | ± 1.0 | ± 4.0 | 50 | 79 | 97 | SOD123FL |
| K105SD | 90 | 1 | ± 1.0 | ± 4.0 | 50 | 95 | 110 | SOD123FL |
| K110SD | 95 | 1 | ± 1.0 | ± 4.0 | 50 | 104 | 118 | SOD123FL |
| K120SD | 100 | 1 | ± 1.0 | ± 4.0 | 50 | 110 | 125 | SOD123FL |
| K130SD | 110 | 1 | ± 1.0 | ± 4.0 | 50 | 120 | 138 | SOD123FL |
| K140SD | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 130 | 146 | SOD123FL |
| K150SD | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 142 | 157 | SOD123FL |
| K160SD | 130 | 1 | ± 1.0 | ± 4.0 | 50 | 140 | 170 | SOD123FL |
| K180SD | 160 | 1 | ± 1.0 | ± 4.0 | 50 | 165 | 195 | SOD123FL |
| K200SD | 180 | 1 | ± 1.0 | ± 4.0 | 50 | 190 | 215 | SOD123FL |
| K220SD | 190 | 1 | ± 1.0 | ± 4.0 | 50 | 205 | 230 | SOD123FL |
| K240SD | 200 | 1 | ± 1.0 | ± 4.0 | 50 | 220 | 250 | SOD123FL |
| K260SD | 220 | 1 | ± 1.0 | ± 4.0 | 50 | 240 | 280 | SOD123FL |
| K090SA | 70 | 1 | ± 1.0 | ± 4.0 | 50 | 79 | 97 | SMA |
| K105SA | 90 | 1 | ± 1.0 | ± 4.0 | 50 | 95 | 110 | SMA |
| K110SA | 95 | 1 | ± 1.0 | ± 4.0 | 50 | 104 | 118 | SMA |
| K120SA | 100 | 1 | ± 1.0 | ± 4.0 | 50 | 110 | 125 | SMA |
| K130SA | 110 | 1 | ± 1.0 | ± 4.0 | 50 | 120 | 138 | SMA |
| K140SA | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 130 | 146 | SMA |
| K160SA | 130 | 1 | ± 1.0 | ± 4.0 | 50 | 140 | 170 | SMA |
| K180SA | 160 | 1 | ± 1.0 | ± 4.0 | 50 | 165 | 195 | SMA |
| K200SA | 180 | 1 | ± 1.0 | ± 4.0 | 50 | 190 | 215 | SMA |
| K220SA | 190 | 1 | ± 1.0 | ± 4.0 | 50 | 205 | 230 | SMA |
| K240SA | 200 | 1 | ± 1.0 | ± 4.0 | 50 | 220 | 250 | SMA |
| K260SA | 220 | 1 | ± 1.0 | ± 4.0 | 50 | 240 | 280 | SMA |
| K090SW | 70 | 1 | ± 1.0 | ± 4.0 | 50 | 79 | 97 | SMA-W |
| K105SW | 90 | 1 | ± 1.0 | ± 4.0 | 50 | 95 | 110 | SMA-W |
| K110SW | 95 | 1 | ± 1.0 | ± 4.0 | 50 | 104 | 118 | SMA-W |
| K120SW | 100 | 1 | ± 1.0 | ± 4.0 | 50 | 110 | 125 | SMA-W |
| K130SW | 110 | 1 | ± 1.0 | ± 4.0 | 50 | 120 | 138 | SMA-W |
| K140SW | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 130 | 146 | SMA-W |
| K150SW | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 142 | 157 | SMA-W |
| K160SW | 130 | 1 | ± 1.0 | ± 4.0 | 50 | 140 | 170 | SMA-W |
| K180SW | 160 | 1 | ± 1.0 | ± 4.0 | 50 | 165 | 195 | SMA-W |
| K200SW | 180 | 1 | ± 1.0 | ± 4.0 | 50 | 190 | 215 | SMA-W |
| K220SW | 190 | 1 | ± 1.0 | ± 4.0 | 50 | 205 | 230 | SMA-W |
| K240SW | 200 | 1 | ± 1.0 | ± 4.0 | 50 | 220 | 250 | SMA-W |
| K260SW | 220 | 1 | ± 1.0 | ± 4.0 | 50 | 240 | 280 | SMA-W |
| K090SB | 70 | 1 | ± 1.0 | ± 4.0 | 50 | 79 | 97 | SMB |
| K105SB | 90 | 1 | ± 1.0 | ± 4.0 | 50 | 95 | 110 | SMB |
| K110SB | 95 | 1 | ± 1.0 | ± 4.0 | 50 | 104 | 118 | SMB |
| K120SB | 100 | 1 | ± 1.0 | ± 4.0 | 50 | 110 | 125 | SMB |
| K130SB | 110 | 1 | ± 1.0 | ± 4.0 | 50 | 120 | 138 | SMB |
| K140SB | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 130 | 146 | SMB |
| K150SB | 120 | 1 | ± 1.0 | ± 4.0 | 50 | 142 | 157 | SMB |
| K160SB | 130 | 1 | ± 1.0 | ± 4.0 | 50 | 140 | 170 | SMB |
| K180SB | 160 | 1 | ± 1.0 | ± 4.0 | 50 | 165 | 195 | SMB |
| K200SB | 180 | 1 | ± 1.0 | ± 4.0 | 50 | 190 | 215 | SMB |
| K220SB | 190 | 1 | ± 1.0 | ± 4.0 | 50 | 205 | 230 | SMB |
| K240SB | 200 | 1 | ± 1.0 | ± 4.0 | 50 | 220 | 250 | SMB |
| K260SB | 220 | 1 | ± 1.0 | ± 4.0 | 50 | 240 | 280 | SMB |
