High Power SMD inductors are surface-mount magnetic components designed to handle large currents while maintaining low DC resistance and minimal power loss. They feature optimized magnetic core materials and robust structures for high saturation current, thermal stability, and efficiency, making them suitable for demanding power applications.
SMD Inductor
High Power SMD Inductor
Description

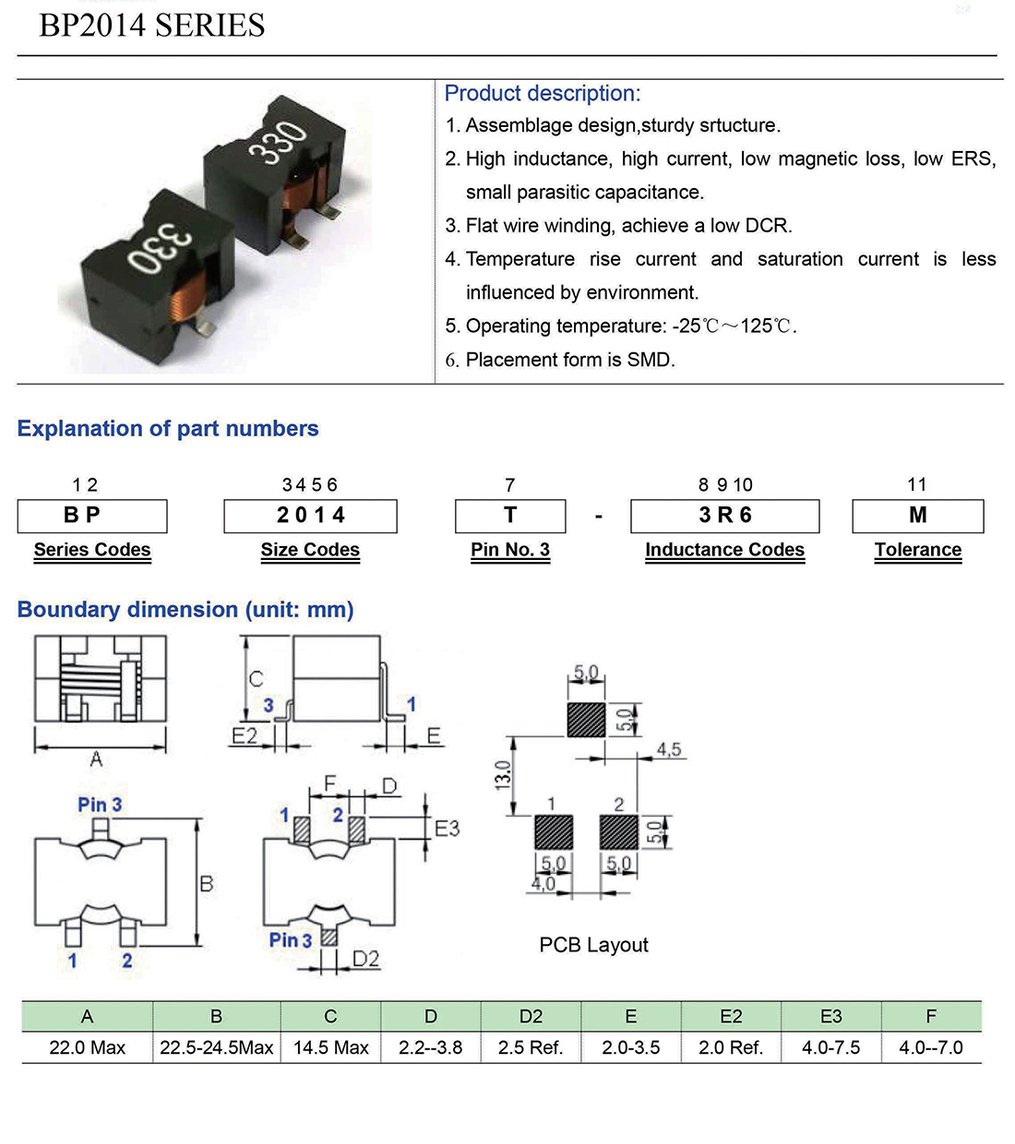

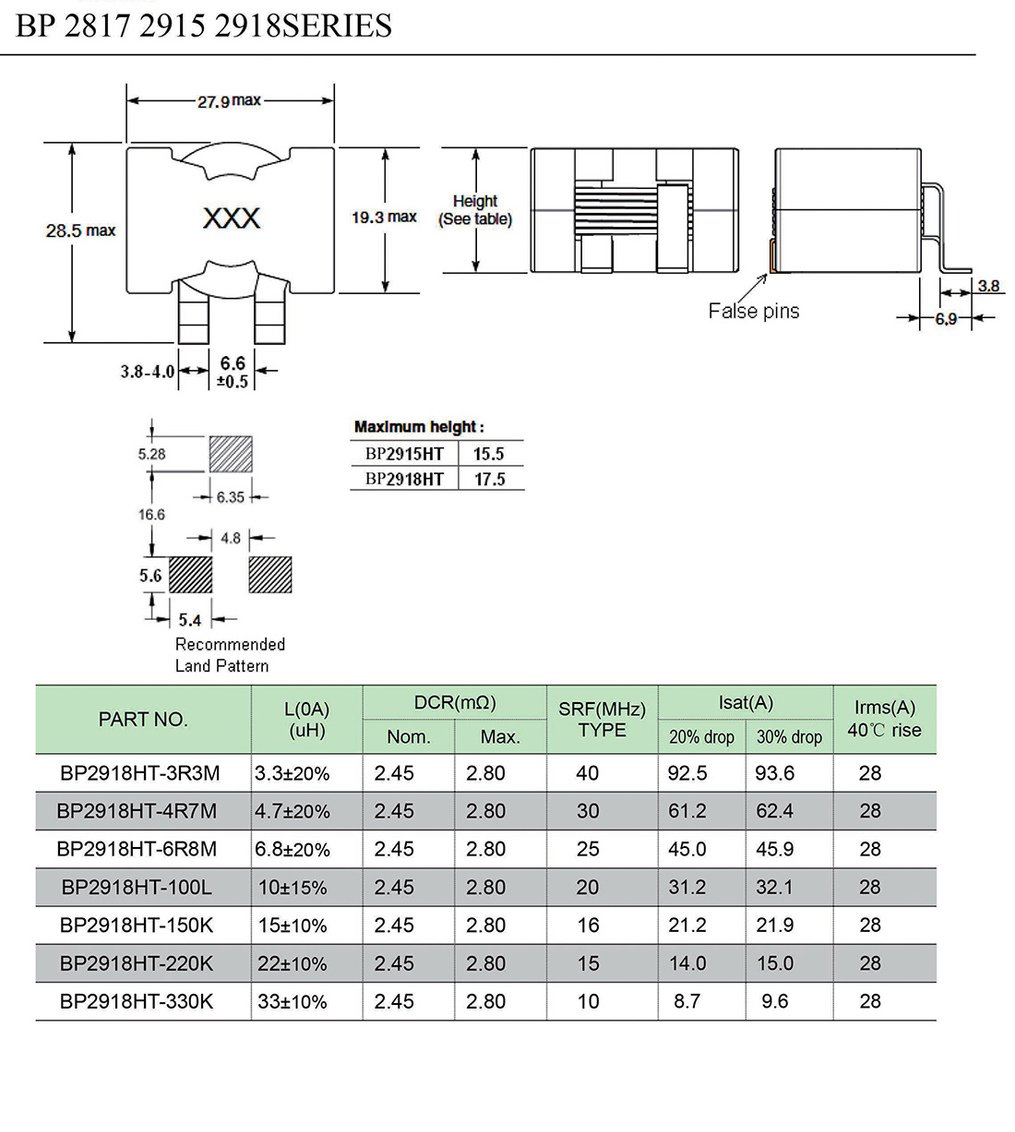

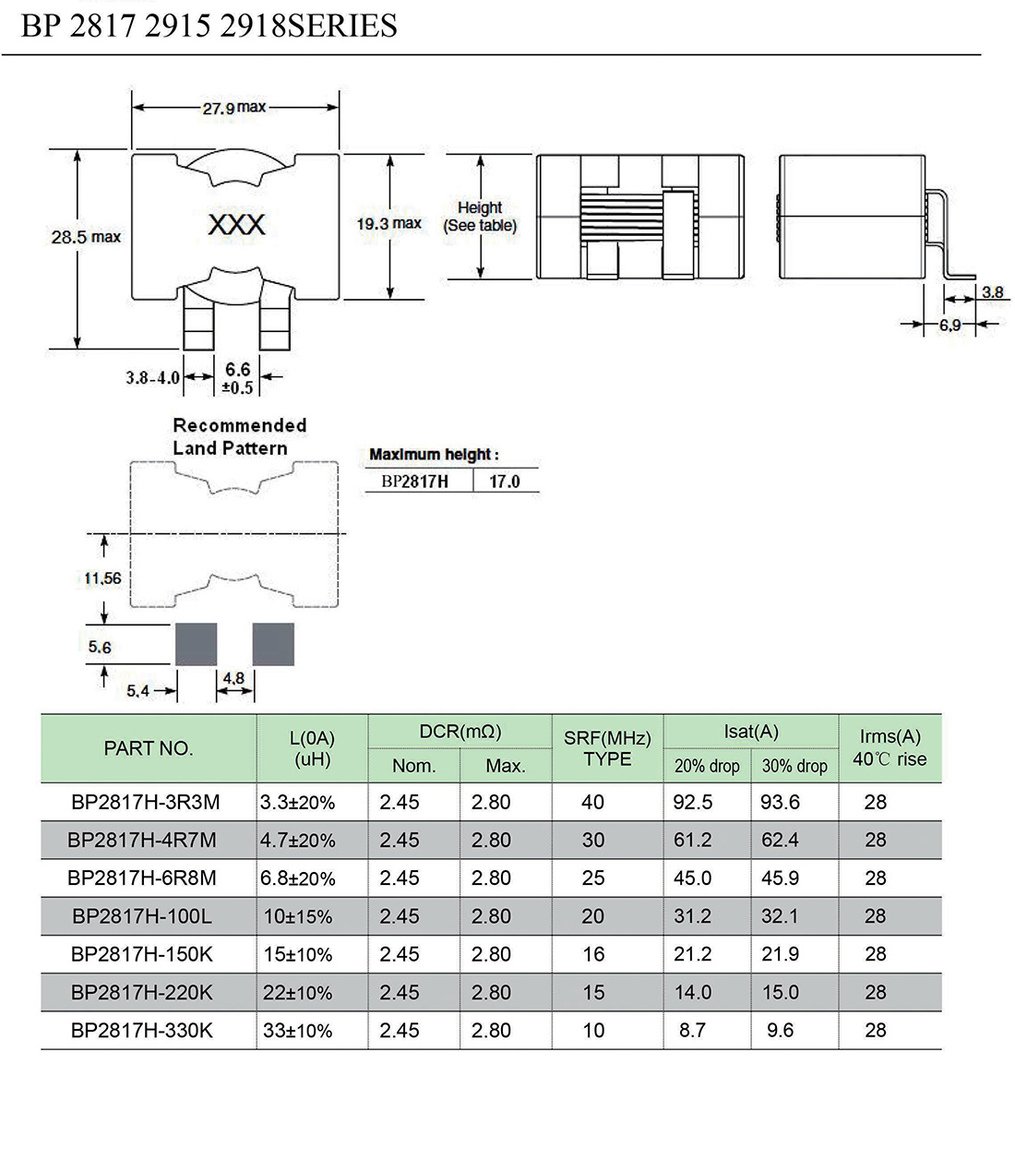

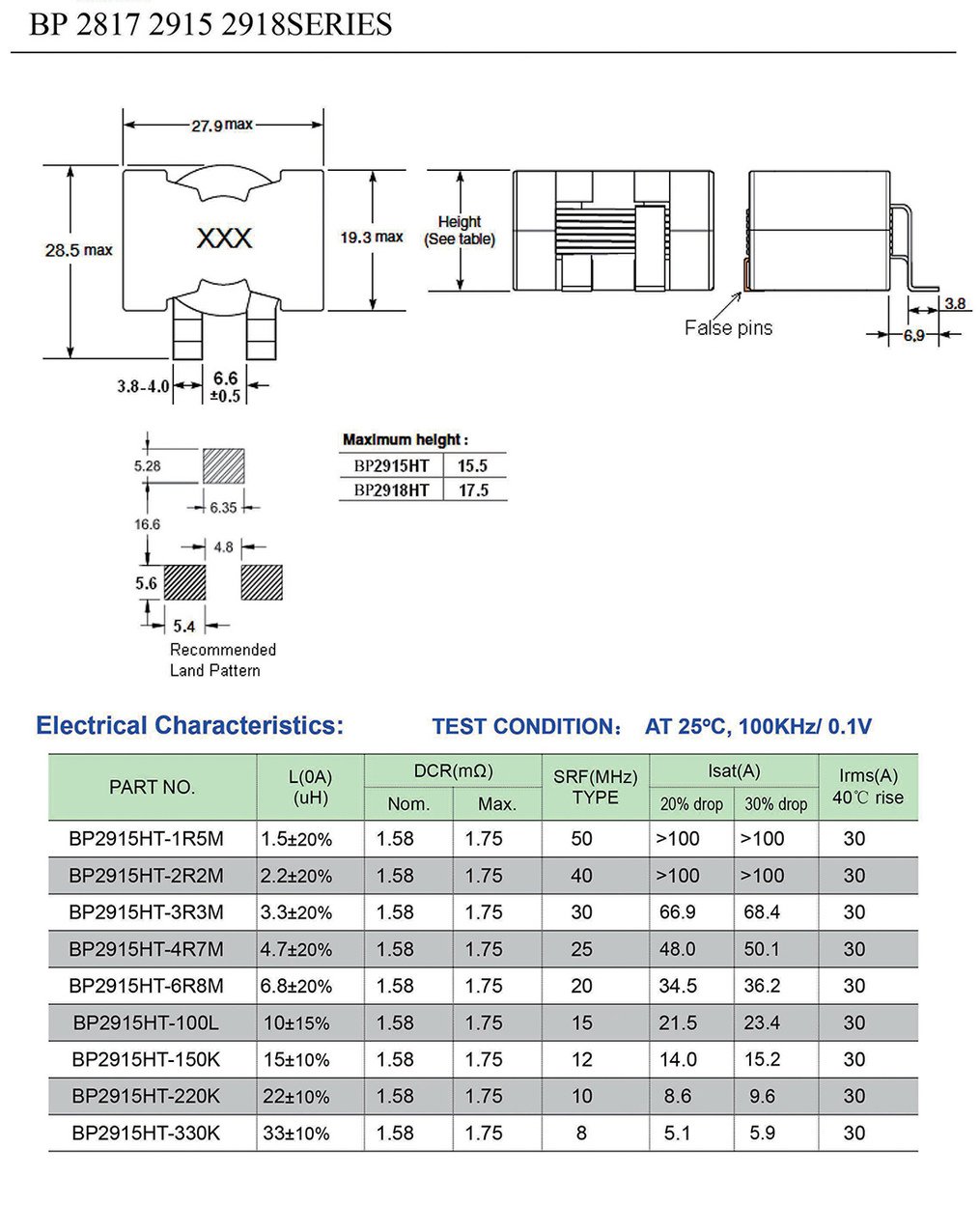

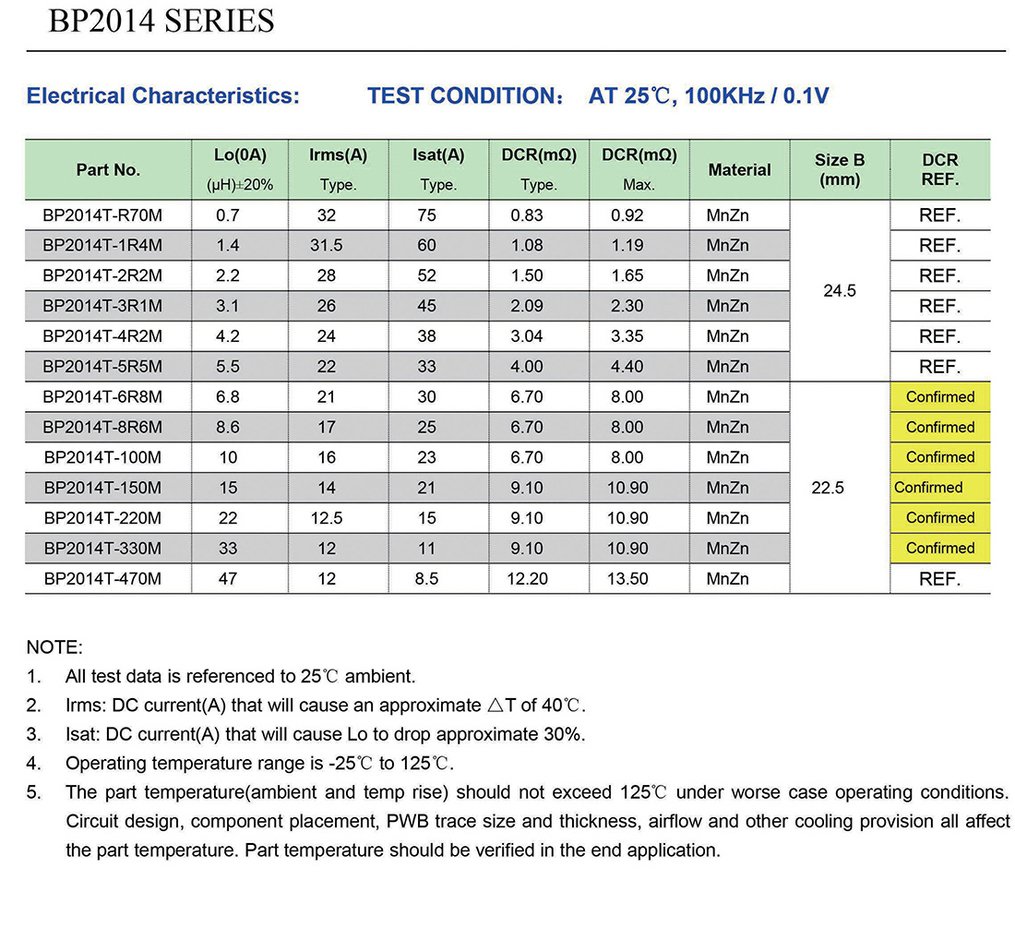

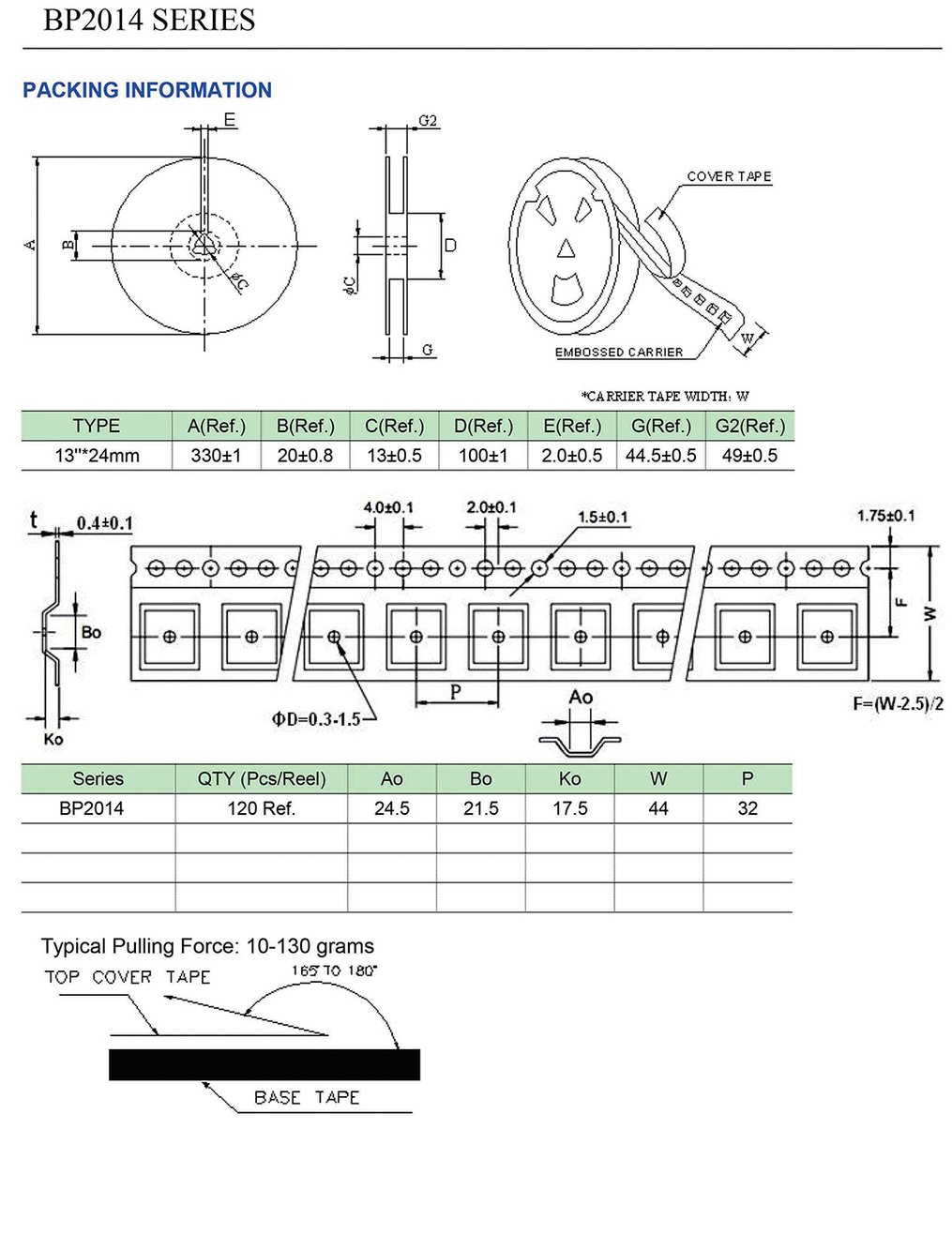

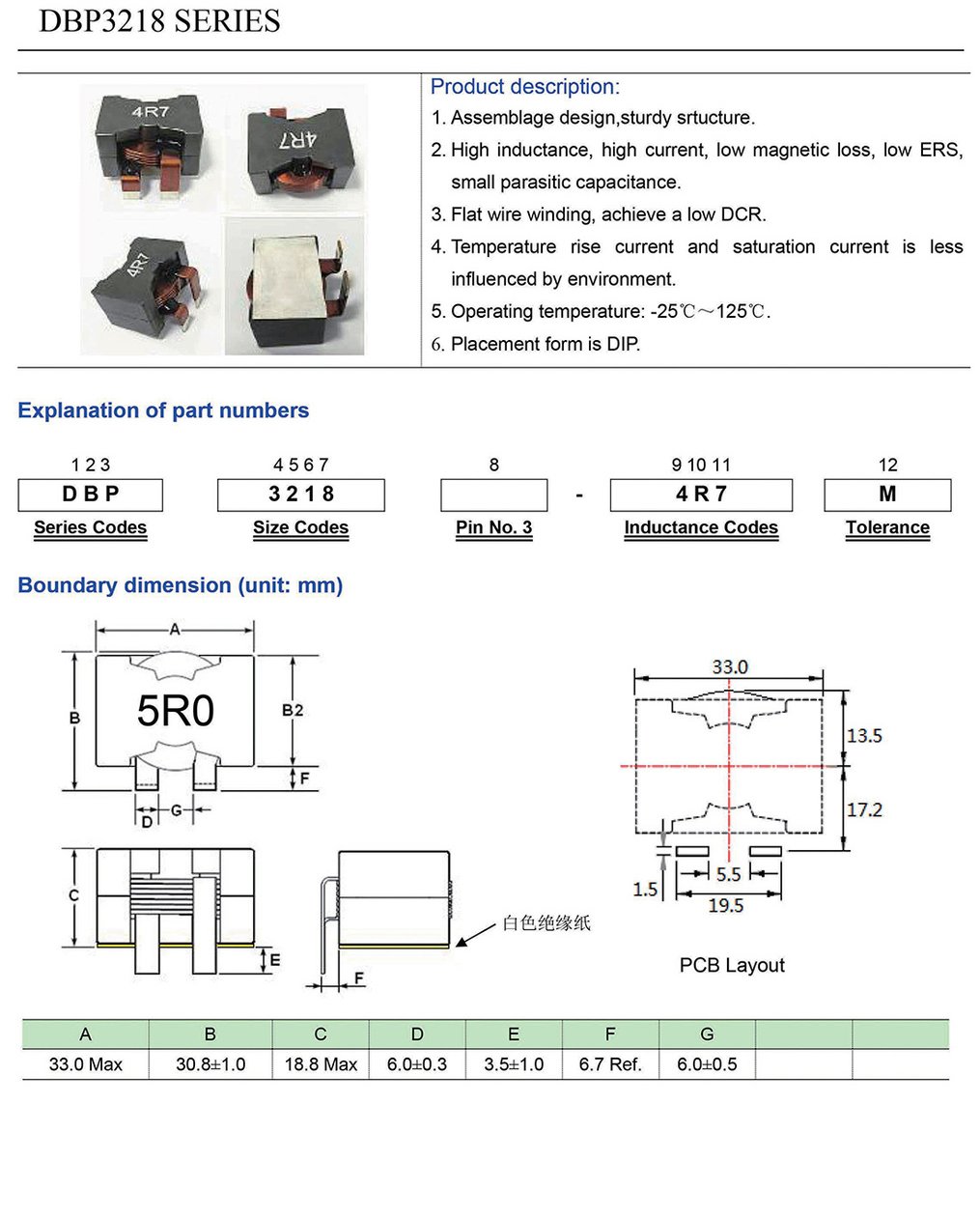

- Part No: BP2014 SERIES,BP2817 2915 2918 SERIES, DBP3218 SERIES, etc.
- Size Range: 4.7×4.0 mm to 22.0×22.0 mm
- Application: DC-DC converters in industrial, automotive, and telecom systems, High-current power supply modules, Battery management systems (BMS), Renewable energy inverters and motor drives.
- Note: The dimension can be made according to customer’s requirement, please send the data sheet or parameter to sales@kotelectronic.com
