BF Series Power SMD Inductor

BF Series Power SMD Inductor

Description

  • Part No: BF1305, BF1807,BF6025, BF6028, BF7032, BF7045, BF7055, BF1045, BF12555, BF12565, BF12575, etc.
  • Size Range: 6.0×6.0×2.8 mm to 18.54×15.24×7.62 mm
  • Application: DC-DC converters for smartphones, tablets, and portable devices, Power supplies for communication and networking equipment, LED lighting drivers, Automotive electronics and industrial control modules
  • Note: The dimension can be made according to customer’s requirement, please send the data sheet or parameter to sales@kotelectronic.com



Category: Tags: , Brand:
Spread the love
Spread the love

The BF Series Power SMD Inductors feature a low-profile, shielded construction that delivers high current handling, low DC resistance, and minimal electromagnetic interference. Designed for compact power circuits, they ensure stable performance and high efficiency.

Parameter

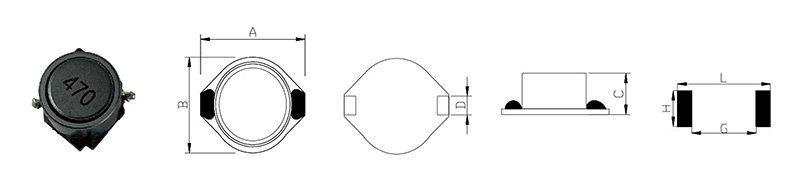

Series Dimensions(mm)
  A(Max) B(Max) C(Max) D L H G
BF1305 13.21 9.4 5.21 2.54 13.5 3 7.3
BF1807 18.54 15.24 7.62 2.54 20.1 3 10.3
Part Number L(uH) DCR(mΩ)MAX Isat（A）   Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF1305-1R0 1 21 5.6   BF1807-100 10 40 8
BF1305-1R5 1.5 22 5.2   BF1807-150 15 48 7
BF1305-2R2 2.2 32 5   BF1807-220 22 59 6
BF1305-3R3 3.3 39 3.9   BF1807-330 33 75 5
BF1305-4R7 4.7 54 3.2   BF1807-470 47 97 4
BF1305-6R8 6.8 75 2.8   BF1807-680 68 138 3
BF1305-100 10 101 2.4   BF1807-101 100 207 2.4
BF1305-150 15 150 2   BF1807-151 150 293 2.1
BF1305-220 22 207 1.6   BF1807-221 220 470 1.9
BF1305-330 33 334 1.4   BF1807-331 330 780 1.1
BF1305-470 47 472 1   BF1807-471 470 1080 1
BF1305-680 68 660 0.9   BF1807-681 680 1400 0.96
BF1305-101 100 1110 0.8   BF1807-102 1000 2010 0.8
BF1305-151 150 1550 0.6
BF1305-221 220 2000 0.5

Note:

  1. Test Frequency：1MHhz/0.1v.
  2. Isat: The inductance value decreased 35% max. from the initial stage after adding DC current.
  3. Inductance Value Tolerance：M：±20%；N：±30%.
  4. Test Instrument：HP4285A,502BC,CH1320.
Series Dimensions(mm)
  A B C(Max) D L H G
BF6025 6.0±0.3 6.0±0.3 2.8 2 7 2.2 2.7
BF6028 6.0±0.3 6.0±0.3 3.1 2 7 2.2 2.7
BF7032 7.0±0.3 7.0±0.3 3.5 2 7.9 2.2 3.7
BF7045 7.0±0.3 7.0±0.3 4.8 2 7.9 2.2 3.7
BF7055 7.0±0.3 7.0±0.3 5.8 2 7.9 2.2 3.7
BF1045 10.1±0.3 10.1±0.3 4.8 3 10.6 3.2 5.6
BF12555 12.5±0.3 12.5±0.3 5.8 3 13.6 3.2 8
BF12565 12.5±0.3 12.5±0.3 6.9 3 13.6 3.2 8
BF12575 12.5±0.3 12.5±0.3 7.9 3 13.6 3.2 8
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF6025-2R2 2.2 32 1.7
BF6025-4R7 4.7 40 1.5
BF6025-5R6 5.6 53 1.4
BF6025-6R8 6.8 5.8 1.3
BF6025-100 10 75 1
BF6025-220 22 160 0.73
BF6025-101 100 650 0.33
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF6028-6R8 6.8 47.3 1.5
BF6028-100 10 70.4 1.3
BF6028-150 15 99 1
BF6028-220 22 137.5 0.77
BF6028-330 33 196 0.69
BF6028-470 47 278 0.59
BF6028-680 68 383 0.5
BF6028-101 100 568 0.42
BF6028-151 150 858 0.34
BF6028-221 220 1293 0.26
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF7032-3R3 3.3 28 1.9
BF7032-4R7 4.7 44 1.7
BF7032-6R8 6.8 50 1.6
BF7032-100 10 64 1.4
BF7032-150 15 90 1.1
BF7032-220 22 132 0.96
BF7032-330 33 192 0.75
BF7032-470 47 288 0.67
BF7032-680 68 372 0.59
BF7032-101 100 540 0.45
BF7032-151 150 780 0.37
BF7032-221 220 1260 0.29
BF7032-331 330 2000 0.22
BF7032-471 470 2460 0.2
BF7032-681 680 3780 0.16
BF7032-102 1000 5730 0.13
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF7045-3R3 3.3 24 2.5
BF7045-4R7 4.7 36 2
BF7045-6R8 6.8 47 1.7
BF7045-100 10 56 1.3
BF7045-150 15 63 1.1
BF7045-220 22 74 0.9
BF7045-330 33 116 0.82
BF7045-470 47 150 0.75
BF7045-680 68 210 0.6
BF7045-101 100 300 0.5
BF7045-151 150 408 0.4
BF7045-221 220 624 0.33
BF7045-331 330 888 0.25
BF7045-471 470 1260 0.22
BF7045-681 680 1776 0.2
BF7045-102 1000 2736 0.14
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF7055-1R5 1.5 23 6.2
BF7055-2R2 2.2 29 5.3
BF7055-3R3 3.3 32 4.3
BF7055-3R9 3.9 34 4
BF7055-4R7 4.7 37 3.6
BF7055-6R8 6.8 45 3
BF7055-100 10 51 2.6
BF7055-150 15 67 2.1
BF7055-180 18 74 1.9
BF7055-220 22 84 1.7
BF7055-330 33 114 1.4
BF7055-470 47 169 1.2
BF7055-680 68 260 0.9
BF7055-101 100 381 0.8
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF1045-3R3 3.3 20 4.9
BF1045-5R6 5.6 27 3.8
BF1045-100 10 44 3
BF1045-150 15 57 2.4
BF1045-220 22 71 2.1
BF1045-330 33 99 1.6
BF1045-470 47 120 1.4
BF1045-680 68 168 1.2
BF1045-101 100 240 1
BF1045-151 150 420 0.79
BF1045-221 220 564 0.65
BF1045-331 330 816 0.54
BF1045-471 470 1236 0.47
BF1045-681 680 1920 0.38
BF1045-102 1000 3360 0.32
BF1045-152 1500 4080 0.22
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF12555-6R0 6 20 3.6
BF12555-100 10 26 3.4
BF12555-150 15 32 2.8
BF12555-220 22 41 2.3
BF12555-330 33 50 1.9
BF12555-470 47 75 1.6
BF12555-680 68 100 1.3
BF12555-101 100 141 1.1
BF12555-151 150 228 0.88
BF12555-221 220 324 0.72
BF12555-331 330 492 0.59
BF12555-471 470 624 0.49
BF12555-681 680 912 0.43
BF12555-102 1000 1344 0.34
BF12555-122 1200 1850 0.32
BF12555-152 1500 2163 0.29
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF12565-2R0 2 15 10
BF12565-4R2 4.2 19 7.3
BF12565-7R0 7 23 5.7
BF12565-100 10 26 5
BF12565-150 15 30 4.2
BF12565-220 22 40 3.5
BF12565-330 33 51 2.8
BF12565-470 47 73 2.4
BF12565-680 68 99 2
BF12565-101 100 154 1.6
BF12565-221 220 342 1
BF12565-102 1000 1375 0.3
Part Number L(uH) DCR(mΩ)MAX Isat（A）
BF12575-1R2 1.2 9 13
BF12575-2R7 2.7 12 10
BF12575-3R9 3.9 13.5 9
BF12575-5R6 5.6 15 7.8
BF12575-6R8 6.8 17 7.2
BF12575-100 10 20 5.5
BF12575-150 15 24 4.7
BF12575-220 22 34 4
BF12575-330 33 52 3.2
BF12575-470 47 69 2.7
BF12575-680 68 101 2
BF12575-101 100 162 1.9
BF12575-151 150 228 1.5
BF12575-221 220 335 1.3

Note:

  1. Test Frequency：1MHhz/0.1v.
  2. lsat: The inductance value decreased 35% max. from the initial stage after adding DC current.
  3. Inductance Value Tolerance：M：±20%；N：±30%.
  4. Test lnstrument：HP4285A,502BC,CH1320.
